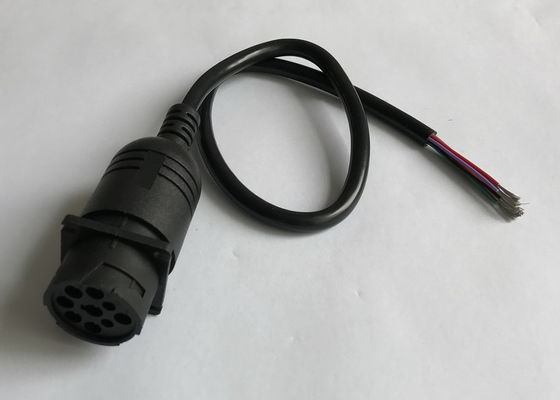

Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable

Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable

Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable
Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable

Large Image :  Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: J1939
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
J1939 Male Plug: Equivalent Of Deutsch HD10-9-1939P Type Of J1939 Male Plug: Type 1
Pins Or Terminals: Copper, Nickel-plated Or Gold-plated Working Temperature: −25℃ ~ +85℃
High Light:

9 pin deutsch

,

J1939 to open end

,

Deutsch 9 Pin to open end cable

Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable


Specification



J1939 male plug equivalent of Deutsch HD10-9-1939P
Type of J1939 male plug Type 1
Color of J1939 male plug Black
Wire 18AWG, pure copper
Material of J1939 male plug PA66 + glass fiber
Pin assignment or pin out customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and miss-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year





The end of Deutsch 9 Pin J1939 male plug can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.



Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable 0

Overmolded





Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable 1

Not overmolded




The Deutsch 9 Pin J1939 male plug is Type 1, so its Pin F is with bigger diameter. Type 1 or Type 2 J1939 female sockets can be inserted into Type 1 J1939 male plugs.

Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable 2


Pin assignment or pin out



Generally speaking, all 9 pins of the J1939 male plug are connected, so there are 9 wires of 18AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.



The pin assignment or pin out can also be customized according to your needs.


Application

This Deutsch 9 Pin Type 1 J1939 Male with Square Flange to Open End Cable is used for testing purposes.



Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
