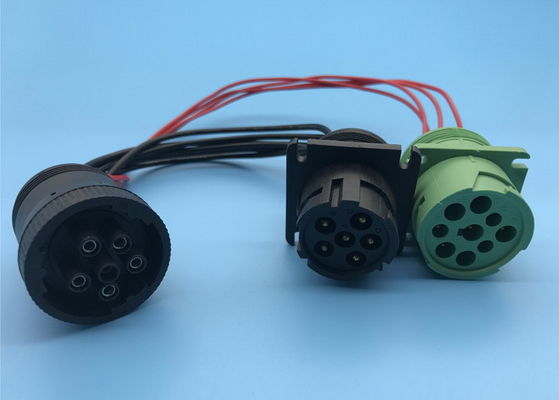

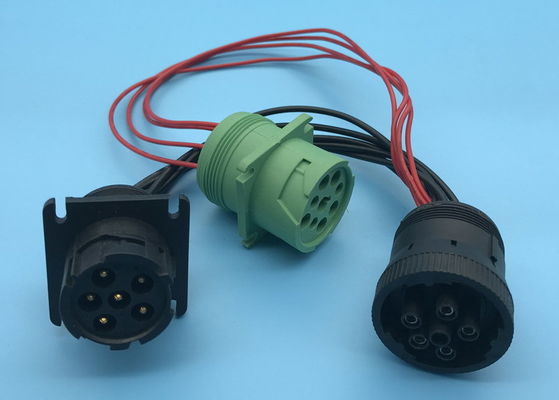

Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable

Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable

Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable
Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable

Large Image :  Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: J1708
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
Wire: 20AWG, Pure Copper J1708 Female Connector: Equivalent Of Deutsch HD16-6-12S-B010
J1708 Male Connector: Equivalent Of Deutsch HD10-6-12P J1939 Male Connector: Equivalent Of Deutsch HD10-9-1939P-P080
Type Of J1939 Male Connector: Type 2 Working Temperature: −25℃ ~ +85℃
High Light:

Deutsch 6 Pin

,

J1708 y splitter cable

,

Deutsch 9 Pin male to 6 pin female y cable

Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable


Specification





J1708 female connector equivalent of Deutsch HD16-6-12S-B010
J1708 male connector equivalent of Deutsch HD10-6-12P
J1939 male connector equivalent of Deutsch HD10-9-1939P-P080
Type of J1939 male connector Type 2
Wire 20AWG, pure copper
Material of J1939 connector PA66 + glass fiber
Material of J1708 connectors PA66 + glass fiber
Pin assignment or pin out customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and mis-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year





The end of Deutsch 6 Pin female and male connectors can be overmolded or not, according to your needs.



Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable 0

Overmolded





Deutsch 6 Pin J1708 Female to J1939 9 Pin Male and J1708 Male Splitter Y Cable 1

Not overmolded




Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):


J1939 male Signal J1708 female J1708 male
A Ground E E
B Battery C C
F J1708, CAN-H A A
G J1708, CAN-L B B



The pin assignment or pin out can also be customized according to your needs.



Application


The common application is to connect telematics or fleet management devices to older 6 pin round diagnostic connector in medium and heavy duty vehicles model years from the early-to-mid-2000s.



This Deutsch 6 Pin J1708 Y Cable allows port relocation or connection of multiple devices. This Y cable is for older medium and heavy duty vehicles model years from the early-to-mid-2000s that have the J1708 6 pin diagnostic port adjacent to the clutch pedal or in some other inconvenient location. It is also for vehicles that require multiple devices be connected to the J1708 6 pin diagnostic port. This Y cable splits the J1708 diagnostic port, allowing one J1708 port at the original location and another J1939 port connected to an ELD or another device which has a J1939 port.


This cable will also allow J1939 diagnostic devices or scanners (with the appropriate software) to connect to commercial vehicles with the J708 6 Pin port.


Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.

Skype: orchard.guo (any time to contact)
