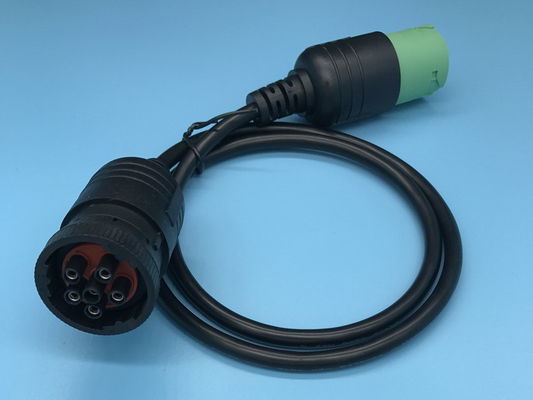

Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable

Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable

Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable
Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable

Large Image :  Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: J1708
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
J1939 Male Receptacle: Equivalent Of Deutsch HD14-9-1939P-P080 Type Of J1939 Male Receptacle: Type 2
J1708 Female Socket: Equivalent Of Deutsch HD16-6-12S-B010 Pins Or Terminals: Copper, Nickel-plated Or Gold-plated
Contact Resistance: 3 Ohm Max. Insulation Resistance: 5M Ohm Min.
High Light:

Deutsch J1708 cable

,

Deutsch 6 Pin cable

,

J1708 female to j1939 male cable

Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable


Specification



J1939 male receptacle equivalent of Deutsch HD14-9-1939P-P080
Type of J1939 male receptacle Type 2
J1708 Female socket equivalent of Deutsch HD16-6-12S-B010
Wire 20AWG, pure copper
Material of J1939 male receptacle PA66 + glass fiber
Material of J1708 female socket PA66 + glass fiber
Pin assignment or pinout customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and mis-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year




The end of J1939 male and J1708 female connectors can be overflow molded or not, according to your needs.

Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable 0
Overflow molded


Deutsch 6 Pin J1708 Female to Green Type 2 J1939 Deutsch 9 Pin Male Cable 1
Not overflow molded



Pin assignment or pinout

Generally speaking, the pin assignment or pinout will be like this (4 pins to be connected):



J1939 male Signal J1708 female
A Ground E
B Battery C
F J1708-H A
G J1708-L B



The pin assignment or pinout can also be customized according to your needs.



Application


This cable allows you to connect your round 8 or 9 pin GREEN OR 8 or 9 pin BLACK ELD device or diagnostic cable to older 6 pin round diagnostics connector in medium and heavy duty vehicles model years from the early-to-mid-2000s.



The black 9 pin connector will accept BOTH BLACK AND/OR GREEN 8 or 9 pin plug. You can plug in any device or cable with round 8 or 9 pin whether it is black or green.



It works with all ELDs such as Cummins ZED, Garmin Elog, KeepTruckin ELD or other ELDs needing to plug into black OR green 8 or 9 pin diagnostics port.



One end has Deutsch 6 pin plug with locking ring - this plugs on to your factory diagnostic connector located in trucks. The other end has 9 pin BLACK receptacle - this will work with ANY BLACK OR GREEN 8 or 9 pin ELDs or diagnostics cables.
