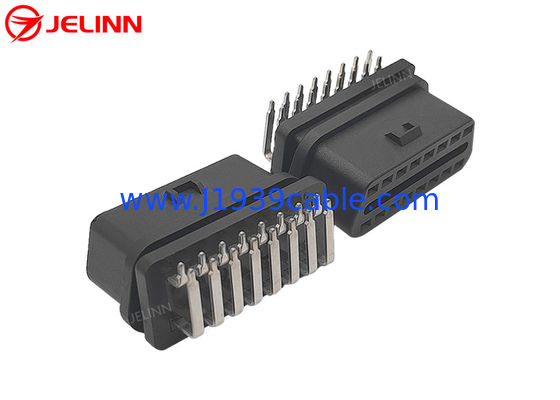

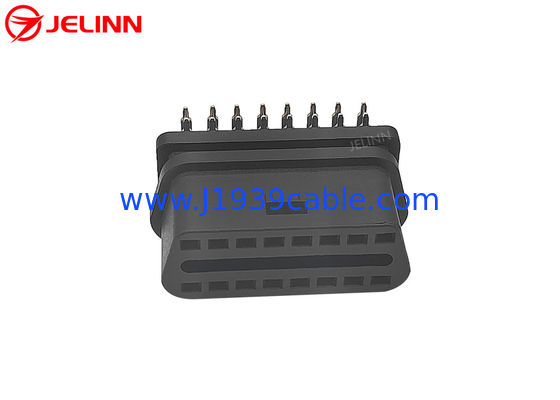

16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins

16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins

16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins
16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins 16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins

Large Image :  16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: OBD2 OBDII
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 500,000 pcs per month
Detailed Product Description
OBD2 Female Connector: Standard Terminals Of OBD2 Female Connector: Copper, Nickel-plated Or Gold-plated
Pins At The Back: Right Angle 90 Degree Housing Material: PA66
Working Temperature: −25℃ ~ +100℃ Contact Resistance: 3 Ohm Max.
High Light:

OBD female connector

,

J1962 female connector right angle pins

,

OBDII female connector right angle pins

16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins


Specification



OBD2 female connector standard
Terminals of OBD2 female connector copper, nickel-plated or gold-plated
Pins at the back right angle 90 degree
Number of terminals 16
Material of OBD2 female connector PA66
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +100℃
Warranty 1 year





This is an OBD2 OBDII female connector, not OBD1.



We made the plastic mold of this OBD2 OBDII female connector by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII female connectors according to the mold.



The OBD2 OBDII female connector is with quality endurable terminals, which are more suitable for a test or diagnostic environment where the devices (connected to the OBD2 female connector) are plugged and unplugged frequently.

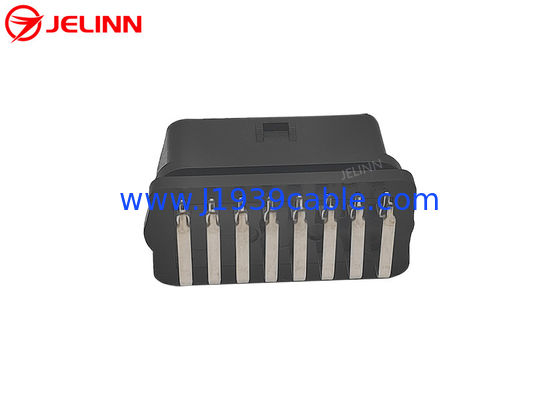

The pins at the back of this OBD2 OBDII female connector are right angle 90-degree. We also have OBD2 OBDII female connectors with other shapes of pins at the back, such as straight pins.


Pin assignment or pin out



The pin assignment or pin out of 16-Pin J1962 OBD2 OBDII female connector is like this:

16 Pin J1962 OBD2 OBDII Female Connector with Right Angle 90 Degree Pins 0


Application

These OBD2 OBDII female connectors can be used to manufacture OBD2 adapters, OBD2 cables or OBD2 splitter Y cables. They can also be assembled into telematics, M2M devices, IoV (Internet of Vehicles) devices.
