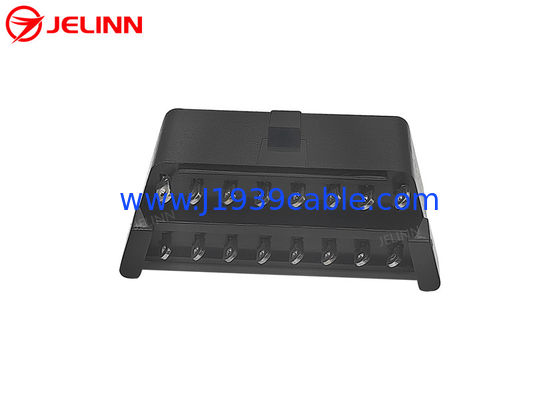

16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back

16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back

16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back
16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back 16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back

Large Image :  16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: OBD2 OBDII
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 500,000 pcs per month
Detailed Product Description
OBD2 Female Connector: Standard Terminals Of OBD2 Female Connector: Copper, Nickel-plated Or Gold-plated
Pins At The Back: Straight Housing Material: PA66
Working Temperature: −25℃ ~ +100℃ Contact Resistance: 3 Ohm Max.
High Light:

16 pin diagnostic connector

,

j1962 diagnostic connector

16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back


Specification



OBD2 female connector standard
Terminals of OBD2 female connector copper, nickel-plated or gold-plated
Pins at the back straight
Number of terminals 16
Material of OBD2 female connector PA66
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +100℃
Warranty 1 year





This is an OBD2 OBDII female connector, not OBD1.



We made the plastic mold of this OBD2 OBDII female connector by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII female connectors according to the mold.

The pins at the back of this OBD2 OBDII female connector are straight. We also have OBD2 OBDII female connectors with other shapes of pins at the back, such as right angle 90-degree pins.


Pin assignment or pin out



The pin assignment or pin out of 16-Pin J1962 OBD2 OBDII female connector is like this:

16 Pin J1962 OBD2 OBDII Female Connector with Straight Pins at The Back 0


Application

These OBD2 OBDII female connectors can be used to manufacture OBD2 cables or OBD2 splitter Y cables.
