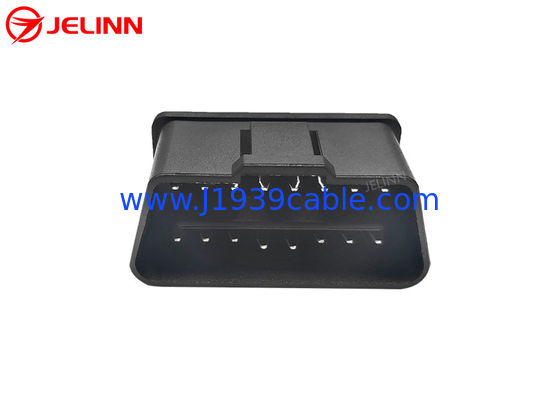

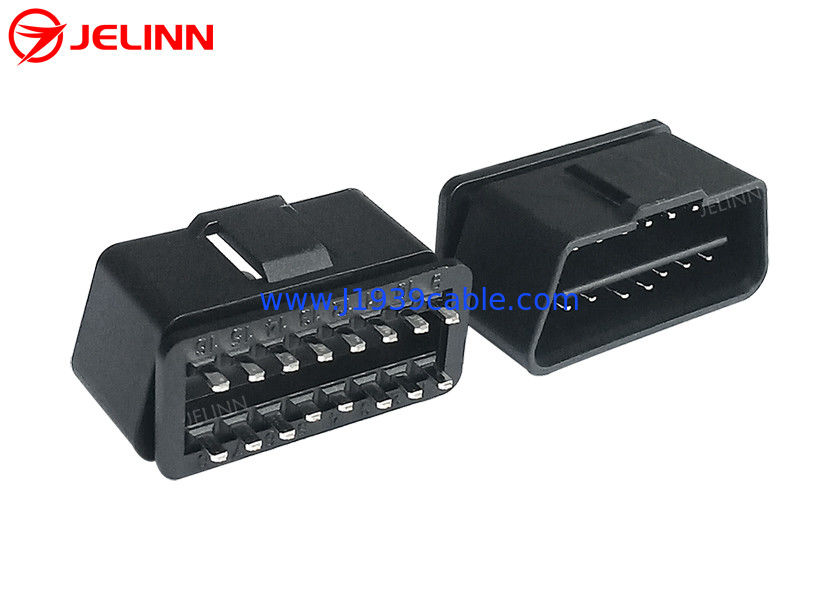

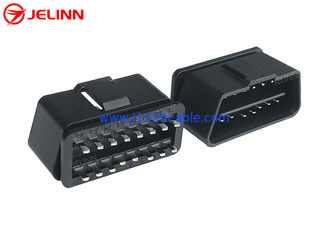

16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins

16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins

16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins
16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins 16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins

Large Image :  16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: OBD2 OBDII
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 500,000 pcs per month
Detailed Product Description
OBD2 Male Plug: Standard Pins Of OBD2 Male Plug: Copper, Nickel-plated Or Gold-plated
Pins At The Back: Straight Housing Material: PA66
Working Temperature: −25℃ ~ +100℃ Contact Resistance: 3 Ohm Max.
High Light:

obd2 connector replacement

,

j1962 diagnostic connector

16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins


Specification


OBD2 male plug standard
Pins of OBD2 male plug copper, nickel-plated or gold-plated
Pins at the back straight
Number of pins 16
Material of OBD2 male plug PA66
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +100℃
Warranty 1 year





This is an OBD2 OBDII male plug, not OBD1.



We made the plastic mold of this OBD2 OBDII male plug by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII male plugs according to the mold.

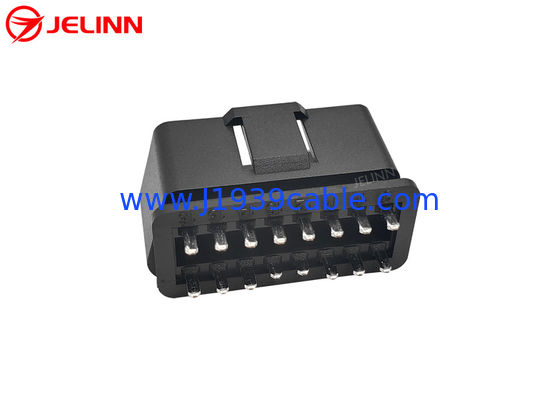

The pins at the back of this OBD2 OBDII male plug are straight. We also have OBD2 OBDII male plugs with other shapes of pins at the back, such as right angle 90-degree pins.


Pin assignment or pin out


The pin assignment or pin out of 16-Pin J1962 OBD2 OBDII male plug is like this:

16 Pin J1962 OBD2 OBDII Male Plug Connector with Straight Pins 0


Application

These OBD2 OBDII male plugs can be used to manufacture OBD2 cables or OBD2 splitter Y cables. They can also be assembled into telematics, M2M devices, IoV (Internet of Vehicles) devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools, car performance tuning tools, key programmers and OBD2 window closers.
