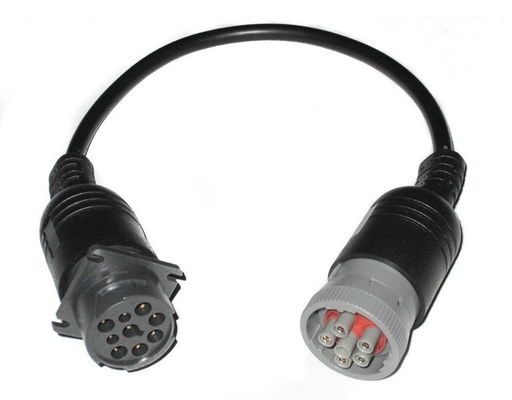

J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable

J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable

J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable
J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable

Large Image :  J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: J1939
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
J1939 Male Receptacle: Equivalent Of Deutsch HD10-9-1939P Type Of J1939 Male Receptacle: Type 1
J1708 Female Socket: Equivalent Of Deutsch HD16-6-12S-B010 Testing Voltage: DC300V 5M Ohm/10ms
Testing: 100% Open, Short And Miss-wire Testing Working Temperature: −25℃ ~ +85℃
High Light:

9 pin deutsch cable

,

9 pin round cable

J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable


Specification



J1939 male receptacle equivalent of Deutsch HD10-9-1939P
Type of J1939 male receptacle Type 1
J1708 Female socket equivalent of Deutsch HD16-6-12S-B010
Wire 18AWG, pure copper
Material of J1939 male receptacle PA66 + glass fiber
Material of J1708 female socket PA66 + glass fiber
Pin assignment or pin out custom
Cable length custom
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and miss-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year





We opened plastic molds of the connectors, sockets, plugs and receptacles. 18AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.



The J1708 female connector is with a locking ring. Rotating the locking ring after plugging assures that the connector won’t come unplugged accidentally.


The ends of J1939 male and J1708 male connectors can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.

J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable 0
Overmolded


J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable 1
Not overmolded





The Deutsch 9 Pin male receptacles are Type 1, so their Pin F are with bigger diameter. Type 1 or Type 2 J1939 female plugs can be inserted into Type 1 J1939 male receptacles.

J1939 Type 1 Deutsch 9 Pin Male with Square Flange to J1708 6 Pin Female Cable 2


Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):



J1939 male Signal J1708 female
A Ground E
B Battery C
F J1708-H A
G J1708-L B



The pin assignment or pin out can also be customized according to your needs.
If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need. If more pins are connected, the price of the cable will be higher because the raw material and labour cost will be higher.


Application

This cable allows you to connect your round 8 or 9 pin GREEN OR 8 or 9 pin BLACK ELD (Electronic Logging Device) or diagnostic cable to older 6 pin round diagnostic port in medium and heavy duty vehicles model years from the early-to-mid-2000s.



The black 9 pin connector will accept BOTH BLACK AND/OR GREEN 8 or 9 pin plug. You can plug in any device or cable with round 8 or 9 pin whether it is black or green.



One end has Deutsch HD16-6-12S-B010 6 pin plug with locking ring - this plugs on to your factory diagnostic port located in trucks. The other end has HD10-9-1939P 9 pin BLACK socket - this will work with ANY BLACK OR GREEN 8 or 9 pin ELDs or diagnostics cables.



Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
