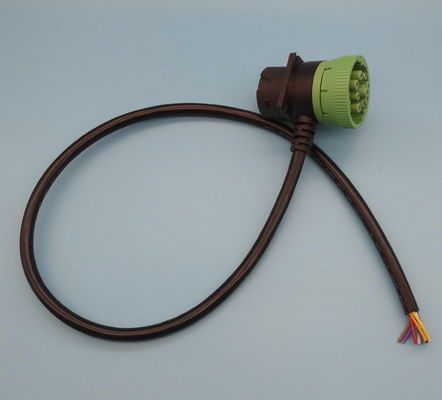

Deutsch 9 Pin J1939 Green Female and Black Male Pass-through to Open End Cable
Specification
| J1939 female plug | equivalent of Deutsch HD16-9-1939S-P080 |
| Type of J1939 female plug | Type 2 |
| J1939 male plug | equivalent of Deutsch HD10-9-1939P |
| Type of J1939 male plug | Type 1 |
| Wire | 20AWG, pure copper |
| Material of J1939 plugs | PA66 + glass fiber |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Pins or terminals | copper, nickel-plated or gold-plated |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and mis-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |
The Deutsch 9 Pin female connector is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 female plugs can be compatible with Type 1 or Type 2 J1939 male plugs.
Pin assignment or pin out
Generally speaking, all 9 pins of the J1939 male and female connectors are connected.
The pin assignment or pin out can also be customized according to your needs.
Application
This cable is used to connect telematics, fleet management or trucking technology devices to commercial vehicles with J1939 9 pin ports. It can also be used to testing purposes.
