J1939 Male Receptacle: | Equivalent Of Deutsch HD10-9-1939P | Type Of J1939 Male Receptacle: | Type 1 |
---|---|---|---|
J1708 Female Socket: | Equivalent Of Deutsch HD16-6-12S-B010 | Testing Voltage: | DC300V 5M Ohm/10ms |
Testing: | 100% Open, Short And Miss-wire Testing | Working Temperature: | −25℃ ~ +85℃ |
High Light: | Deutsch 9 Pin adapter,J1939 to J1708 adapter,9 pin J1939 to 6 pin J1708 adapter |

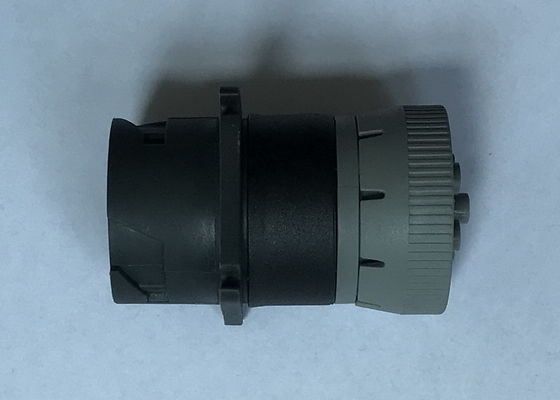

J1939 Type 1 Deutsch 9 Pin Male to J1708 6 Pin Female Adapter
Specification
9-Pin J1939 male receptacle | equivalent of Deutsch HD10-9-1939P |
Type of 9-Pin J1939 male receptacle | Type 1 |
6-Pin J1708 Female socket | equivalent of Deutsch HD16-6-12S-B010 |
Wire | 20AWG, pure copper |
Material of 9-Pin J1939 male receptacle | PA66 + glass fiber |
Material of 6-Pin J1708 female socket | PA66 + glass fiber |
Pin assignment or pin out | custom |
Pins or terminals | copper, nickel-plated or gold-plated |
Contact Resistance | 3 ohm max. |
Insulation Resistance | 5M ohm min. |
Working Temperature | −25℃ ~ +85℃ |
Testing | 100% open, short and miss-wire testing |
Testing Voltage | DC300V 5M ohm/10ms |
Warranty | 1 year |
We opened plastic molds of the connectors, sockets, plugs and receptacles. 20AWG pure copper quality wires are employed to manufacture these adapters. We can always make the adapters and cables with excellent connectivity and durability.

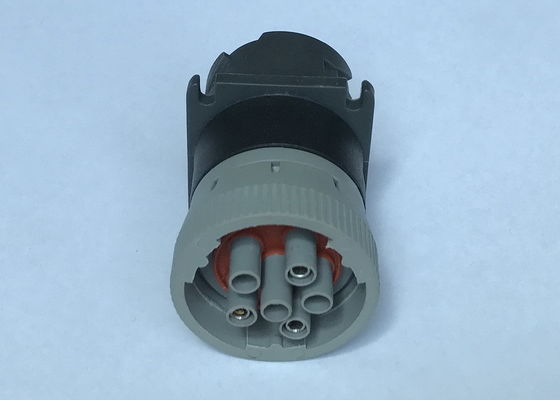

The 6-Pin J1708 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 6-Pin J1708 male receptacle assures that the connector won’t come unplugged accidentally.

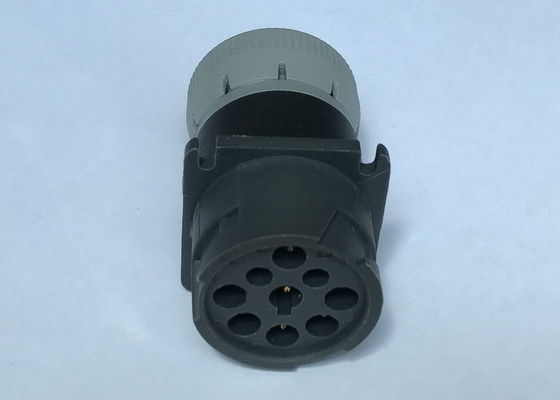

The Deutsch 9 Pin male receptacles are Type 1, so their Pin F are with bigger diameter. Type 1 or Type 2 J1939 female plugs can be inserted into Type 1 J1939 male receptacles.
Pin assignment or pin out
Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):
9-Pin J1939 male | Signal | 6-Pin J1708 female |
A | Ground | E |
B | Battery | C |
F | J1708-H | A |
G | J1708-L | B |
The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need. If more pins are connected, the price of the adapter will be higher because the raw material and labour cost will be higher.
Application
This adapter allows you to connect your round 8 or 9 pin GREEN OR 8 or 9 pin BLACK ELD (Electronic Logging Device) or diagnostic cable to older 6 pin round diagnostic port in medium and heavy duty vehicles model years from the early-to-mid-2000s.
The black 9 pin connector will accept BOTH BLACK AND/OR GREEN 8 or 9 pin plug. You can plug in any device or cable with round 8 or 9 pin whether it is black or green.
One end has Deutsch HD16-6-12S-B010 6 pin plug with locking ring - this plugs on to your factory diagnostic port located in trucks. The other end has HD10-9-1939P 9 pin BLACK socket - this will work with ANY BLACK OR GREEN 8 or 9 pin ELDs or diagnostics cables.
