|J1939 Male Receptacle:||Equivalent Of Deutsch HD10-9-1939P-P080||Type Of J1939 Male Receptacle:||Type 2|
|J1708 Female Socket:||Equivalent Of Deutsch HD16-6-12S-B010||Testing Voltage:||DC300V 5M Ohm/10ms|
|Testing:||100% Open, Short And Miss-wire Testing||Working Temperature:||−25℃ ~ +85℃|
J1939 to J1708,
9 pin J1939 to 6 pin J1708 cable,
9 pin J1939 male to 6 pin J1708 female cable

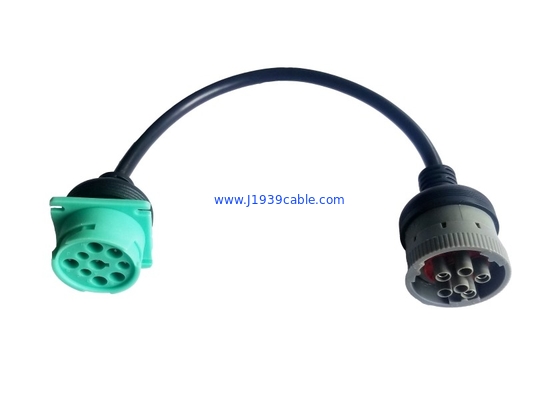

Green Deutsch 9-Pin J1939 Male to 6-Pin J1708 Female CAN Bus Cable
|9-Pin J1939 male receptacle||equivalent of Deutsch HD10-9-1939P-P080|
|Type of 9-Pin J1939 male receptacle||Type 2|
|Color of 9-Pin J1939 male receptacle||Green|
|6-Pin J1708 Female socket||equivalent of Deutsch HD16-6-12S-B010|
|Wire||20AWG, pure copper|
|Material of 9-Pin J1939 male receptacle||PA66 + glass fiber|
|Material of 6-Pin J1708 female socket||PA66 + glass fiber|
|Pin assignment or pin out||custom|
|Pins or terminals||copper, nickel-plated or gold-plated|
|Contact Resistance||3 ohm max.|
|Insulation Resistance||5M ohm min.|
|Working Temperature||−25℃ ~ +85℃|
|Testing||100% open, short and miss-wire testing|
|Testing Voltage||DC300V 5M ohm/10ms|
The 6-Pin J1708 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 6-Pin J1708 male receptacle assures that the connector won’t come unplugged accidentally.
The ends of 9-Pin J1939 male and 6-Pin J1708 male connectors can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.
The Deutsch 9 Pin J1939 male connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J.
Pin assignment or pin out
Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):
|9-Pin J1939 male||Signal||6-Pin J1708 female|
The pin assignment or pin out can also be customized according to your needs.
This cable allows you to connect your round 8 or 9 pin ELDs (Electronic Logging Devices) to older 6 pin J1708 round diagnostic ports in medium and heavy duty vehicles model years from the early-to-mid-2000s.
The 6 pin J1708 female socket with locking ring plugs to the factory 6-Pin diagnostic diagnostic port. The other end, 9-Pin J1939 male receptacle then accepts 8 or 9 pin ELDs.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
