|OBD2 Female Connector:||Standard||Terminals Of OBD2 Female Connector:||Copper, Nickel-plated Or Gold-plated|
|Pins At The Back:||Straight||Housing Material:||PA66|
|Working Temperature:||−25℃ ~ +100℃||Contact Resistance:||3 Ohm Max.|
16 Pin J1962 Connector,
OBDII female connector,
straight pins OBD2 female connector

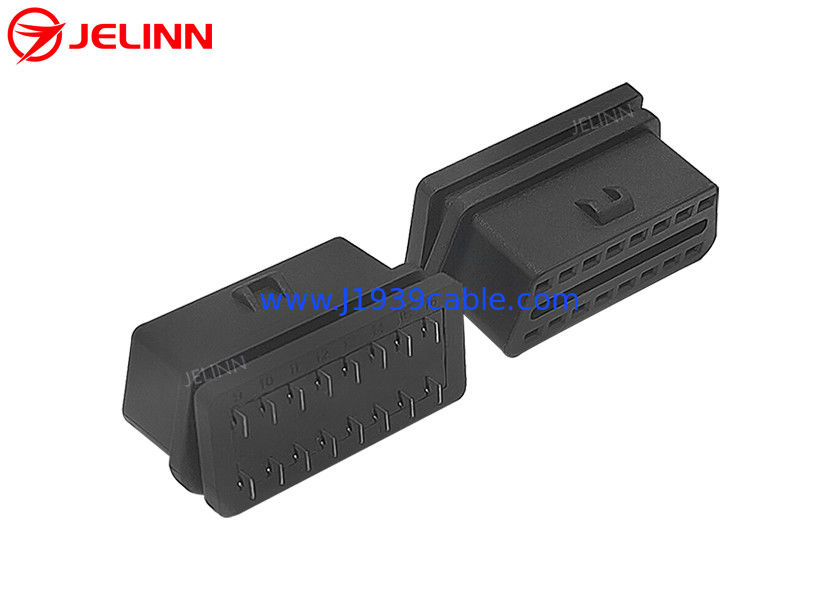

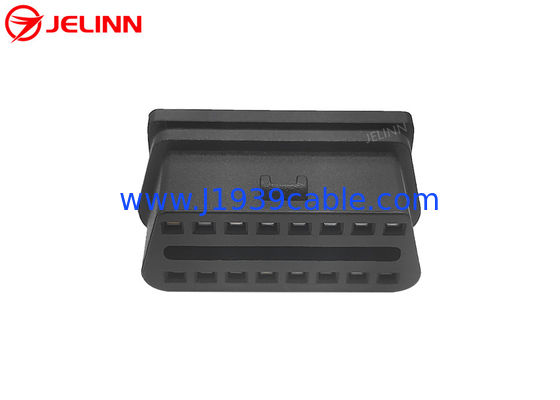

16 Pin J1962 OBD2 OBDII Female Connector with Endurable Straight Pins
|OBD2 female connector||standard|
|Terminals of OBD2 female connector||copper, nickel-plated or gold-plated|
|Pins at the back||straight|
|Number of terminals||16|
|Material of OBD2 female connector||PA66|
|Contact Resistance||3 ohm max.|
|Insulation Resistance||5M ohm min.|
|Working Temperature||−25℃ ~ +100℃|
This is an OBD2 OBDII female connector, not OBD1.
We made the plastic mold of this OBD2 OBDII female connector by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII female connectors according to the mold.
The OBD2 OBDII female connector is with quality endurable terminals, which are more suitable for a test or diagnostic environment where the devices (connected to the OBD2 female connector) are plugged and unplugged frequently.

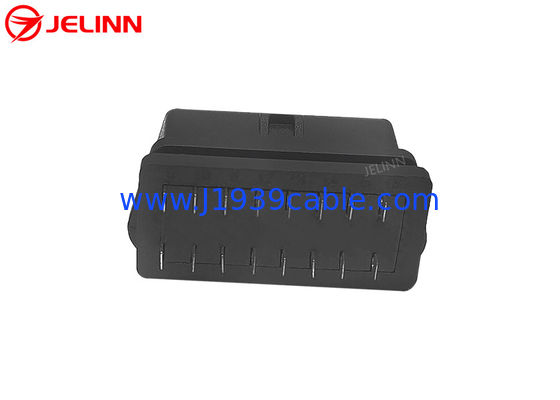

The pins at the back of this OBD2 OBDII female connector are straight. We also have OBD2 OBDII female connectors with other shapes of pins at the back, such as right angle 90-degree pins.
Pin assignment or pin out
The pin assignment or pin out of 16-Pin J1962 OBD2 OBDII female connector is like this:
These OBD2 OBDII female connectors can be used to manufacture OBD2 adapters, OBD2 cables or OBD2 splitter Y cables.
