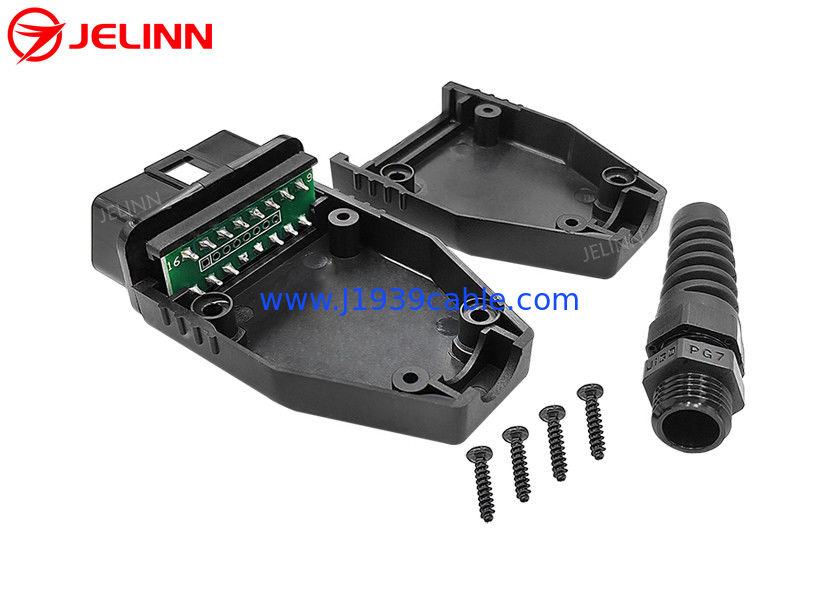

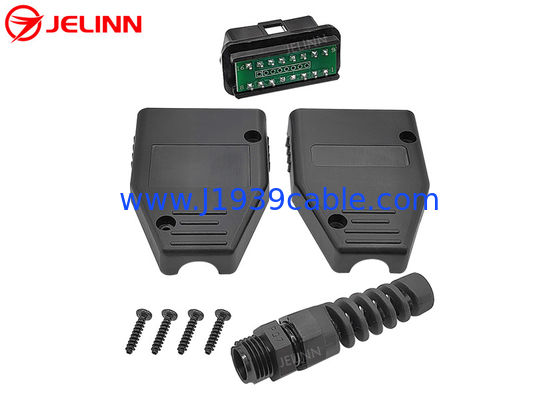

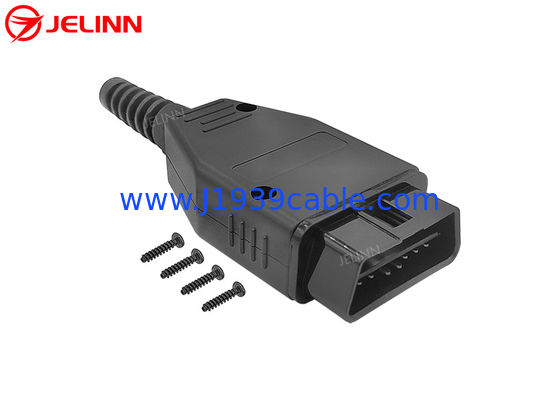

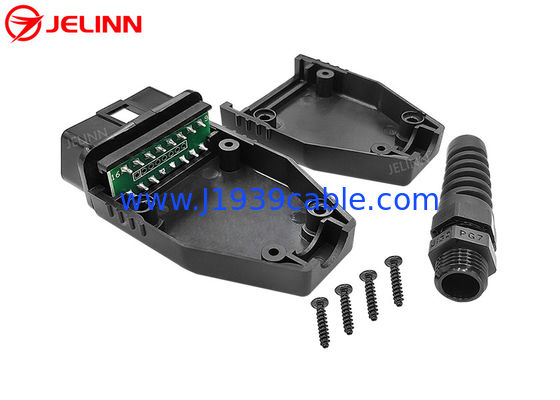

OBD2 OBDII Enclosure with J1962 OBD2 Male Connector and Wire Tube
|OBD2 male plug||standard|
|Pins of OBD2 male plug||copper, nickel-plated or gold-plated|
|Pins at the back||straight|
|Number of pins||16|
|Material of OBD2 male plug||PA66|
|Material of OBD2 enclosure||ABS|
|Surface treatment of the OBD2 enclosure||painting|
|Dimension of OBD2 enclosure||60*45*22 mm|
|Contact Resistance||3 ohm max.|
|Insulation Resistance||5M ohm min.|
|Working Temperature||−25℃ ~ +100℃|
We made the plastic mold of the OBD2 OBDII enclosure and the OBD2 OBDII male plug by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII enclosures and the OBD2 OBDII male plugs according to the mold.
This OBD2 OBDII enclosure is with an outlet port and an wire tube, so a wire can come out through the wire tube from the port at the end of the enclosure.
This OBD2 OBDII enclosure is with snaps and press-fit style. Press the top and the bottom of the OBD2 OBDII enclosure to make them attach to each other.
This OBD2 OBDII enclosure can be used to assemble ELM327 diagnostic devices, OBD2 CAN programming tools, Nitro OBD2 tuning devices, ECU tuning tools and car performance tuning tools.
