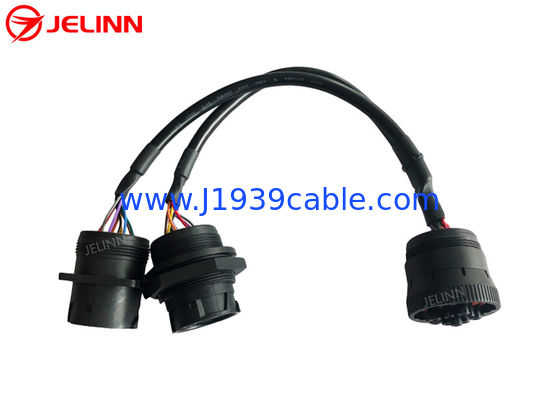

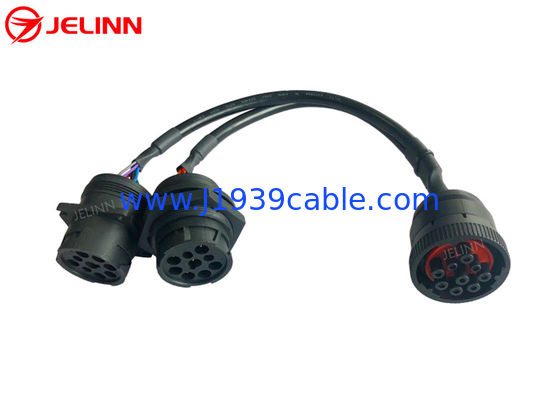

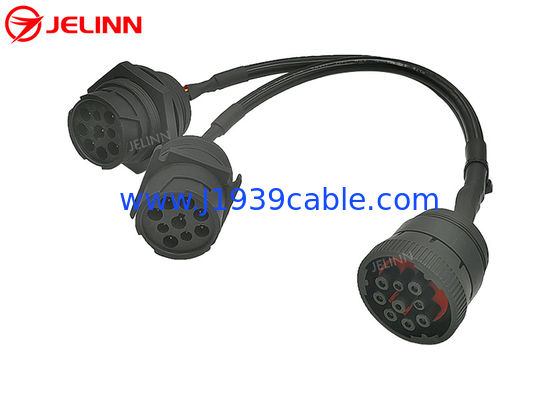

Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms

Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms

Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms
Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms

Large Image :  Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: J1939
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
J1939 Female Connector: Equivalent Of Deutsch HD16-9-1939S J1939 Male Receptacle 1: Equivalent Of Deutsch HD10-9-1939P
J1939 Male Receptacle 2: Equivalent Of Deutsch HD10-9-1939P-B022 Wire: 20AWG, Pure Copper
Type Of J1939 Female Connector: Type 1 Type Of J1939 Male Receptacles: Type 1
Contact Resistance: 3 Ohm Max. Insulation Resistance: 5M Ohm Min.
Testing Voltage: DC300V 5M Ohm/10ms
High Light:

DC300V J1939 Y Cable

,

Female To Male J1939 Y Cable

,

Overmolded J1939 Y Connector

9-Pin J1939 Female to Threaded J1939 Male & J1939 Male Square Flange Splitter Y Cable


Specification



J1939 female connector equivalent of Deutsch HD16-9-1939S
Type of J1939 female connector Type 1
Type of J1939 male receptacles Type 1
J1939 male receptacle 1 equivalent of Deutsch HD10-9-1939P
J1939 male receptacle 2 equivalent of Deutsch HD10-9-1939P-B022
Wire 20AWG, pure copper
Material of J1939 connectors PA66 + glass fiber
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Pin assignment or pin out customized
Cable length customized
Testing 100% open, short and mis-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year




The end of Deutsch 9-Pin female and male connectors can be overmolded or not, according to your needs.



Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms 0

Overmolded







Overmolded J1939 Y Cable Type 1 Female To Male Connector DC300V 5M ohm/10ms 1

Not overmolded





The Deutsch 9 Pin male receptacles are Type 1, so their Pin F are with bigger diameter. Type 1 or Type 2 J1939 female plugs can be inserted into Type 1 J1939 male receptacles.



One of the J1939 male receptacles is threaded jamnut mount style common on Paccar trucks (Kenworth, Peterbilt, Western Star).



Pin assignment or pin out



In most cases, all 9 pins of the J1939 male and female connectors are connected, so there are 9 wires of 20AWG in the cable.


The pin assignment or pinout can also be customized according to your needs.


Application

There is only one J1939 diagnostic port in trucks. If you want to connect two devices with J1939 port to the truck at the same time, this Deutsch 9 Pin J1939 Y Adapter Cable is needed. It can connect ELDs (Electronic Logging Devices, such as Cummins ZED, Garmin eLog or KeepTruckin ELD), diagnostic devices or scanners or fault code readers to the truck.



This cable can be used in most diesel trucks such as Kenworth, International, Freightliner, Isuzu, Hino, Mack, Peterbilt, Oshkosh, Sterling, Volvo, Workhorse, Navist and Western Star.


Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
