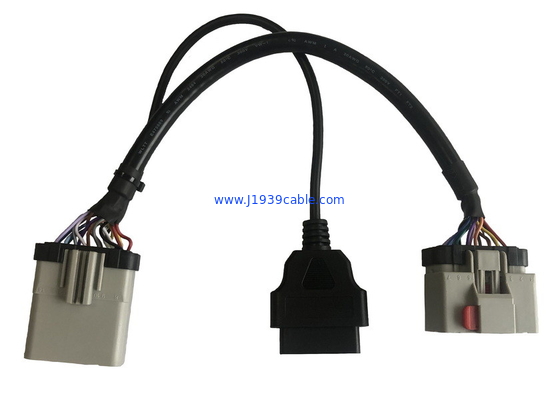

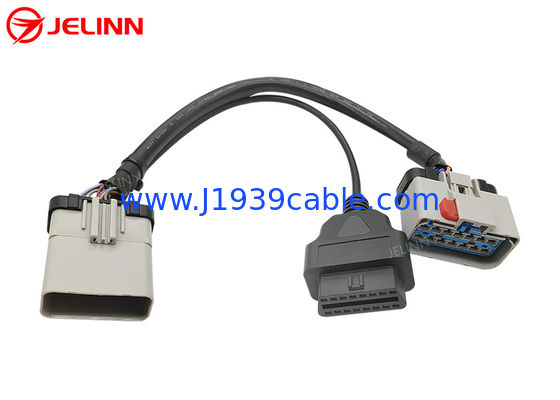

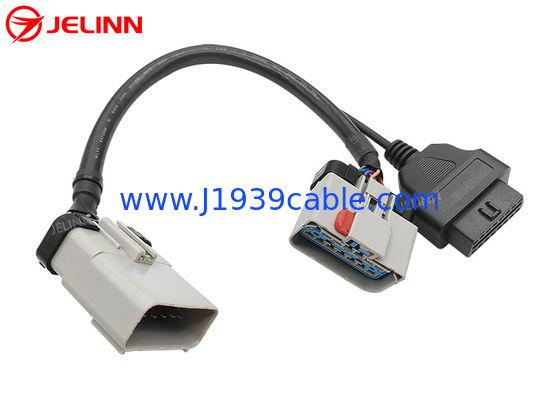

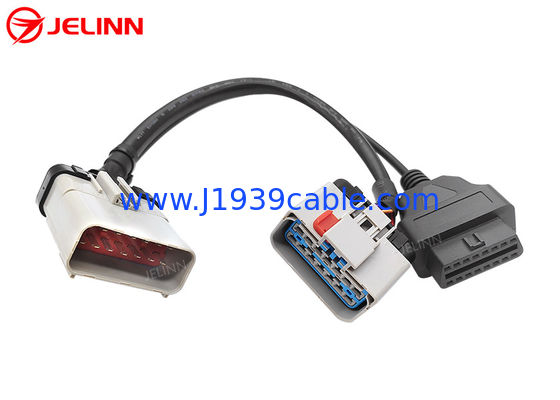

RP1226 Gray 14 Pin Male To RP1226 Female And 16 Pin OBD2 OBDII Female Splitter Y Cable

RP1226 Gray 14 Pin Male To RP1226 Female And 16 Pin OBD2 OBDII Female Splitter Y Cable

RP1226 Gray 14 Pin Male To RP1226 Female And 16 Pin OBD2 OBDII Female Splitter Y Cable
RP1226 Gray 14 Pin Male To RP1226 Female And 16 Pin OBD2 OBDII Female Splitter Y Cable RP1226 Gray 14 Pin Male To RP1226 Female And 16 Pin OBD2 OBDII Female Splitter Y Cable

Large Image :  RP1226 Gray 14 Pin Male To RP1226 Female And 16 Pin OBD2 OBDII Female Splitter Y Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: RP1226 to OBD2 Y cable
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-18 working days
Payment Terms: T/T, Wire Transfer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
RP1226 Male Connector: Equivalent Of Aptiv 54201416 RP1226 Female Connector: Equivalent Of Aptiv 54201412
Contact Terminals: Copper With Nickel Plating Or Gold Plating Contact Resistance: 3 Ohm Max
Insulation Resistance: 5M Ohm Min Working Temperature: −30℃ ~ +100℃
High Light:

RP1226 to OBD2

,

RP1226 to OBD2 cable

,

RP1226 to OBD2 Y cable

RP1226 Gray 14 Pin Male To RP1226 female and 16 pin OBD2 OBDII female Splitter Y Cable


Specification

RP1226 male connector equivalent of Aptiv 54201416
RP1226 female connector equivalent of Aptiv 54201412
OBD2 female connector Standard
Wire 20AWG, pure copper
Material of RP1226 male connector PA66 + glass fiber
Material of OBD2 female connector PA66 + glass fiber
Pinout (wiring diagram) customized
Cable length 33cm (13 inches) or customized
Pins or terminals copper with nickel plating or gold plating
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −30℃ ~ +100℃
Testing 100% open, short and miss-wire testing
Warranty 1 year




Pinout (wiring diagram)

Generally speaking, the pinout (wiring diagram) can be as below.

The cable arm between the RP1226 male connector and the RP1226 female connector are fully wired. There are 14 wires of 20AWG in this cable arm.
4 pins of the OBD2 female connector are wired. are fully wired. There are 4 wires of 20AWG in the cable arm between the RP1226 male connector and the OBD2 female connector.



RP1226 male RP1226 female Signal OBD2 female
8 8 Ground 4 or 5
1 1 Battery power 16
2 2 J1939, S-CAN high 6
9 9 J1939, S-CAN low 14
3 3
4 4
5 5
6 6
7 7
10 10
11 11
12 12
13 13
14 14


Sometimes, the pinout (wiring diagram) can also be as below.
The cable arm between the RP1226 male connector and the RP1226 female connector are fully wired. There are 14 wires of 20AWG in this cable arm.
6 pins of the OBD2 female connector are wired. are fully wired. There are 6 wires of 20AWG in the cable arm between the RP1226 male connector and the OBD2 female connector.



RP1226 male RP1226 female Signal OBD2 female
8 8 Ground 4 or 5
1 1 Battery 16
2 2 J1939, S-CAN high 6
9 9 J1939, S-CAN low 14
6 6 J1708, CAN high 12
13 13 J1708, CAN low 13
3 3
4 4
5 5
7 7
10 10
11 11
12 12
14 14



The pinout (wiring diagram)
 can also be customized according to customers' needs.


Application

According to TMC (the ATA's Technology and Maintenance Council) Recommended Practice RP1226 Messaging Standardization, some 2019 and newer heavy trucks such as Kenworth, Peterbilt, Volvo, Mack and Freightliner in North America are equipped with an Accessory Connector in the cab on the driver’s side behind dash, near the fuse panel. The truck owner can check the Body Builder Manual for more information.

ELD (Electronic Logging Devices), telematics devices or other aftermarket devices that require data from J1939, CAN or J1708 should be connected to this RP1226 Accessory Connector. Otherwise, the connections may not be warrantable.

If you have an device with an OBD2 16-pin port and you would like to connect it to a truck equipped with 14-pin RP1226 Accessory Connector, this cable is needed.



There is only one RP1226 Accessory Connector in the truck. If you would like to keep the RP1226 Accessory Connector available after the OBD2 device is connected, this splitter Y cable is a good choice.
