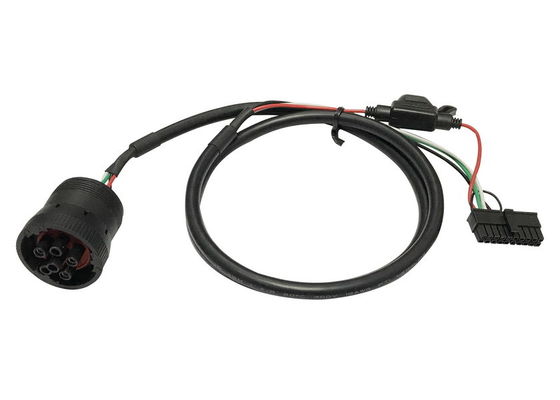

Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse

Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse

Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse
Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse

Large Image :  Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: J1708
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
J1708 Female Socket: Equivalent Of Deutsch HD16-6-12S Molex 20P Female Connector: Equivalent Of 43025-2000
Testing: 100% Open, Short And Miss-wire Testing Testing Voltage: DC300V 5M Ohm/10ms
High Light:

female to male cable

,

9 pin deutsch cable

Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse


Specification



J1708 female socket equivalent of Deutsch HD16-6-12S
Molex 20P Female connector equivalent of 43025-2000
Fuse 32V 3A, with overmold fuse holder
Wire 18AWG, pure copper
Material of J1708 connector PA66 + glass fiber
Pin assignment or pin out custom
Cable length custom
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and miss-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year




The end of J1708 female socket can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.



Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse 0

Overmolded





Deutsch 6-Pin J1708 Female to Molex 20 Pin Female Cable with Fuse 1

Not overmolded




The J1708 6-pin female socket is with a locking ring. Rotating the locking ring after plugging assures that the connector won’t come unplugged accidentally.




Pin assignment or pin out



The pin assignment or pin out can be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need. If more pins are connected, the price of the cable will be higher because the raw material and labor cost is higher.



Application


This is a cable between a J1708 round Deutsch 6-pin female socket and a Molex 20-pin female connector.



Some telematics, fleet management devices or trucking technology devices are with Molex 20-pin male ports, which can be matched with the Molex 20-pin female socket on this cable. This cable is used to connect telematics, fleet management devices or trucking technology devices to older 6 pin J1708 round diagnostic ports in medium and heavy duty vehicles model years from the early-to-mid-2000s.



Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
