OBD2 OBDII J1962 Right Angle Male 24V to Dual Female Flat Y Cable

OBD2 OBDII J1962 Right Angle Male 24V to Dual Female Flat Y Cable


Specification

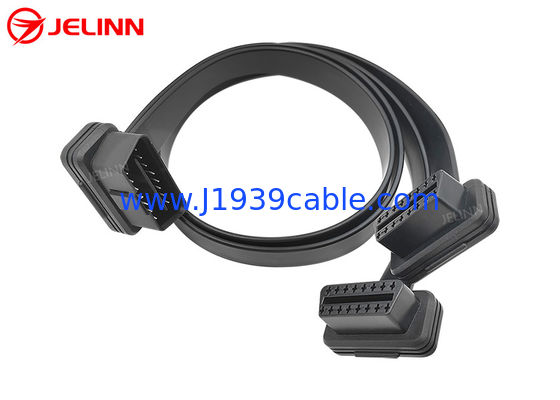

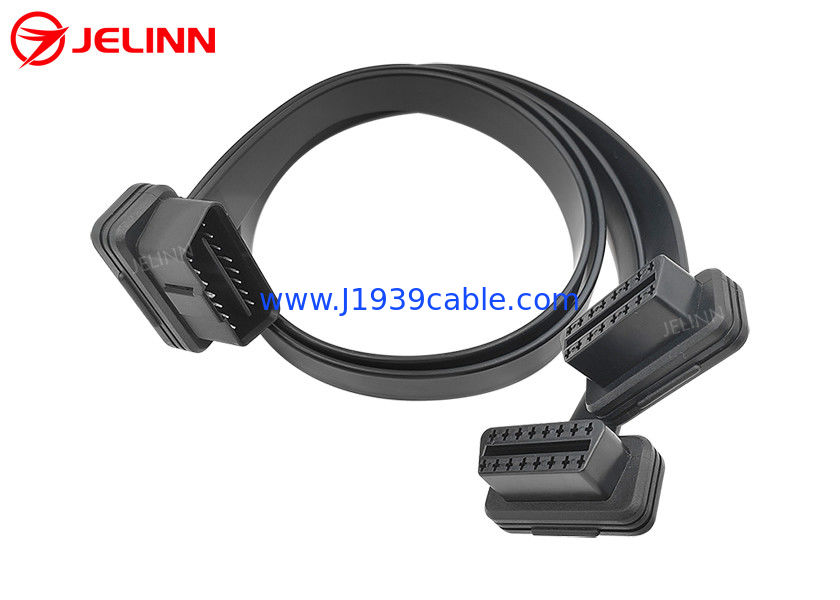

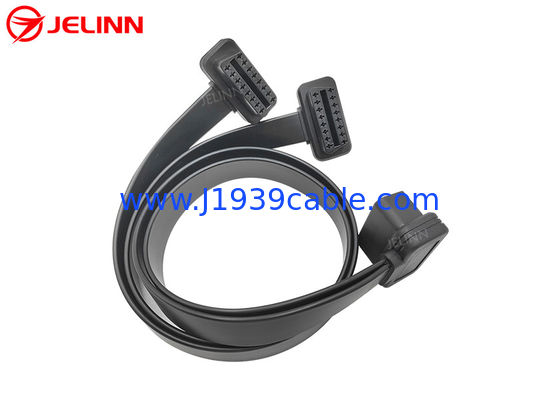

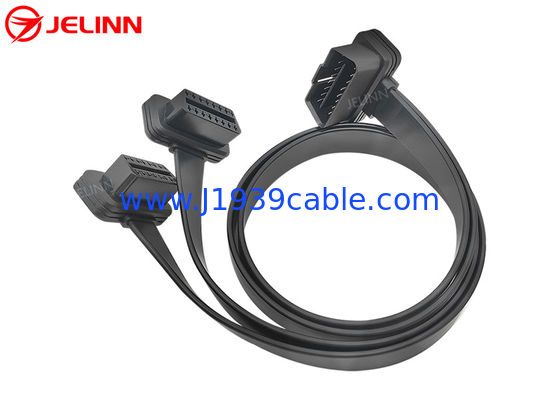

This is a Y cable with 3 ends of an OBD2 male plug and two OBD2 female connectors.

There is a gap on the baffle in the middle of the OBD2 OBDII male plug. This kind of OBD2 male plug can be connected to OBD2 female ports of 24V/12V vehicles.

We can make different overmolds for the ends of OBD2 OBDII female and male connectors. If you don’t like the overmolds at the ends of OBD2 OBDII female and male connectors as shown in the pictures or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge. Moreover, we can even make it for free as long as the order quantity is 5000 pcs or more.

Pin assignment or pin out

The pin assignment or pin out can be like this:


As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in both main cables is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in both main cables.

The pin assignment or pin out can also be like this:

As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in both main cables.

The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.


Application

This Y cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female diagnostic ports.

There is only one OBD2 female diagnostic port in each vehicle. If you would like to connect two telematics or IoV devices with OBD2 male ports in a vehicle, this OBD2 OBDII male to dual female splitter Y cable can help do this. This Y cable splits the original OBD2 female diagnostic port. Insert the OBD2 male plug of this splitter Y cable into the OBD2 female diagnostic port in the vehicle. Check whether the telematics or IoV devices can be compatible with the vehicle’s voltage (12V or 24V). It is important!

In some cars, the OBD2 OBDII female diagnostic ports are covered by lids. If you would like to connect and install some OBD2 telematics or IoV devices to the OBD2 OBDII female diagnostic ports in these cars, this cable is perfect for this application. The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out at a right angle 90-degree. The overmold is with slim design and the cable is flat and thin. These features make it easy to connect and install these kinds of OBD2 telematics or IoV devices to the OBD2 OBDII female diagnostic ports in these cars. Moreover, we can also create an overmold which makes the total thickness of the OBD2 male plug (we have a very thin OBD2 male plug, thinnest and standard OBD2 male plug in the world) after overmolding only 19mm. This OBD2 male plug of 19mm after overmolding can be inserted into the OBD2 OBDII female diagnostic ports covered by lids in most cars including Volkswagen Caddy.

This cable can also be used to connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software).


Sending an inquiry

If you haven’t found or don’t have time to look for the OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
