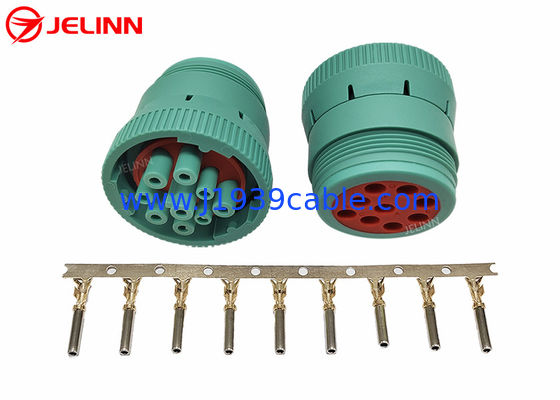

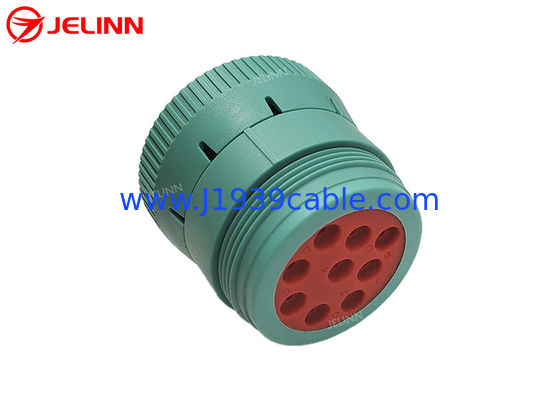

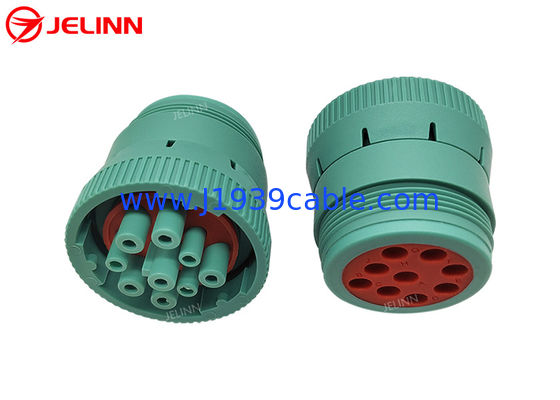

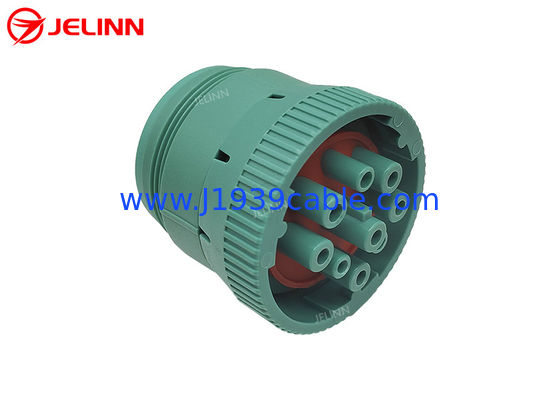

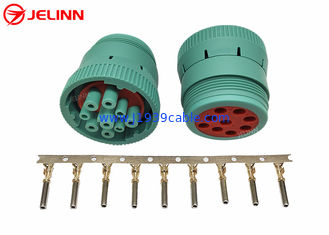

Green Type 2 Deutsch 9 Pin J1939 Female Connector with 9 PCS of Terminals
Specification
| 9-Pin J1939 female connector | equivalent of Deutsch HD16-9-1939S-P080 |
| Type of 9-Pin J1939 female connector | Type 2 |
| Color of 9-Pin J1939 female connector | Green |
| Number of positions | 9 |
| Terminals | copper, nickel-plated or gold-plated |
| Number of terminals | 9 pcs |
| Contact type | crimp |
| Contact size | 16 |
| Mounting type | free hanging (in-line) |
| Fastening type | bayonet lock |
| Orientation | keyed |
| Housing material | PA66 + glass fiber |
| Grommet material | silicone |
| Working Temperature | −25℃ ~ +100℃ |
| Warranty | 1 year |
We made the plastic mold of this 9-Pin J1939 female connector by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 female connectors according to the mold.
Remember that this is a female connector because it is with terminals. The 9-Pin J1939 male connector is with pins.
The 9-Pin J1939 female socket is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.
The Deutsch 9 Pin J1939 female connector is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pn male receptacles.
These Type 2 J1939 9-Pin female connectors can mate with the following J1939 9-Pin male plugs:
original or equivalent of Deutsch HD10-9-1939P-P080
original or equivalent of Deutsch HD10-9-1939PE-P080
original or equivalent of Deutsch HD10-9-1939P
original or equivalent of Deutsch HD16-9-1939PE
original or equivalent of Deutsch HD10-9-1939P-B022
original or equivalent of Deutsch HD10-9-1939PE-B022
original or equivalent of Deutsch HD10-9-1939P-BP03
original or equivalent of Deutsch HD10-9-1939PE-BP03
original or equivalent of Deutsch HD14-9-1939P-P080
original or equivalent of Deutsch HD14-9-1939PE-P080
original or equivalent of Deutsch HD14-9-1939P
original or equivalent of Deutsch HD14-9-1939PE
original or equivalent of Amphenol AHD17-9-1939PES80
original or equivalent of Amphenol AHD17-9-1939PES
Pin assignment or pinout
The pin assignment or pinout of 9-Pin J1939 female connector is like this:
The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is clockwise.
Application
These 9-Pin J1939 female connectors can be used to manufacture 9-Pin J1939 cables and adapters.
