|J1939 Male Plug:||Equivalent Of Deutsch HD10-9-1939P-B022||Type Of J1939 Male Plug:||Type 1|
|Color Of J1939 Male Plug:||Black||Pins:||Copper, Nickel-plated Or Gold-plated|
|Housing Material:||PA66 + Glass Fiber||Grommet Material:||Silicone|
threaded J1939 connerctor,
9 Pin J1939 Male Plug,

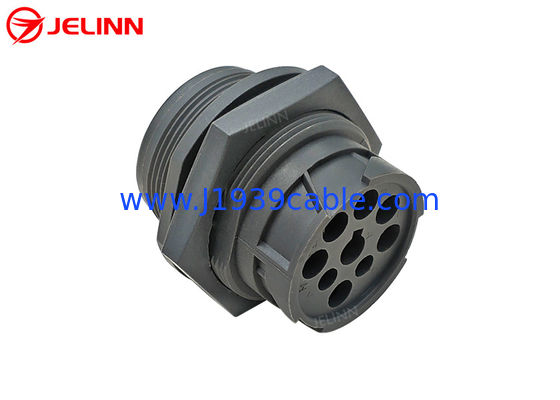

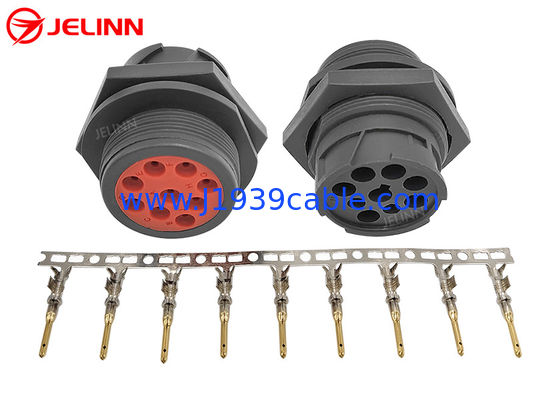

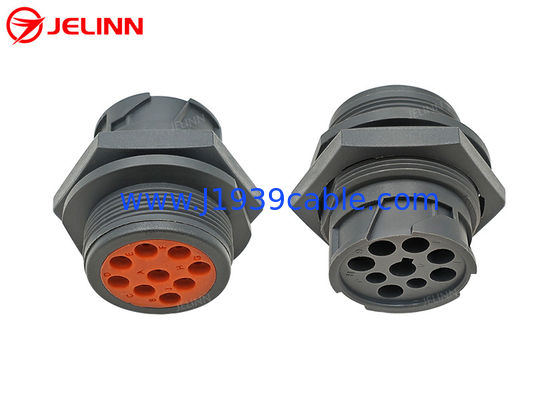

Threaded Type 1 Deutsch 9 Pin J1939 Male Plug Connector with 9 Pins
|9-Pin J1939 male plug||equivalent of Deutsch HD10-9-1939P-B022|
|Type of 9-Pin J1939 male plug||Type 1|
|Color of 9-Pin J1939 male plug||black|
|Number of positions||9|
|Pins||copper, nickel-plated or gold-plated|
|Number of pins||9 pcs|
|Mounting type||panel mount|
|Fastening type||bayonet lock|
|Housing material||PA66 + glass fiber|
|Working Temperature||−25℃ ~ +100℃|
We made the plastic mold of this 9-Pin J1939 male plug by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 male plugs according to the mold.
Remember that this is a male connector because it is with pins.
The Deutsch 9 Pin J1939 male plug is Type 1, so its Pin F is with bigger diameter than Pin C and J. Type 1 or Type 2 J1939 9-Pin female sockets can be inserted into Type 1 J1939 9-Pin male plugs.
They can mate with the following connectors:
original or equivalent of Deutsch HD16-9-1939S
original or equivalent of Deutsch HD16-9-1939SE
original or equivalent of Deutsch HD16-9-1939S-P080
original or equivalent of Deutsch HD16-9-1939SE-P080
original or equivalent of Deutsch HD17-9-1939S
original or equivalent of Deutsch HD17-9-1939SE
original or equivalent of Deutsch HD17-9-1939S-P080
original or equivalent of Deutsch HD17-9-1939SE-P080
The 9-Pin J1939 male receptacle is threaded jamnut mount style common on Paccar trucks (Kenworth, Peterbilt, Western Star).
Pin assignment or pinout
The pin assignment or pinout of 9-Pin J1939 male plug is like this:
The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is anticlockwise.
These 9-Pin J1939 male plugs can be used to replace the original 9 pin J1939 plugs equipped in Paccar trucks (Kenworth, Peterbilt, Western Star). They can also be used to manufacture 9-Pin J1939 cables and adapters.
