|J1939 Female Connector:||Equivalent Of Deutsch HD16-9-1939S||Type Of J1939 Female Connector:||Type 1|
|Color Of J1939 Female Connector:||Black||Terminals:||Copper, Nickel-plated Or Gold-plated|
|Housing Material:||PA66 + Glass Fiber||Grommet Material:||Silicone|
9 pin deutsch connector,
J1939 female connerctor,
Deutsch 9 Pin female connector

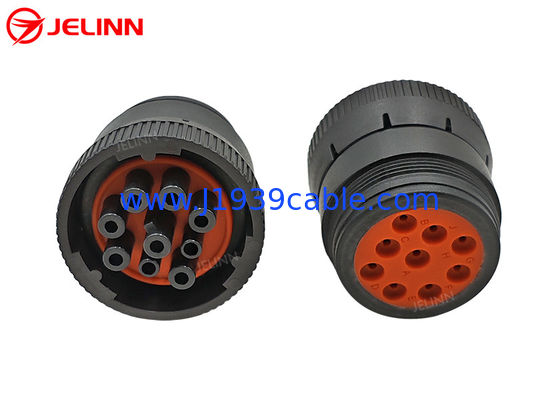

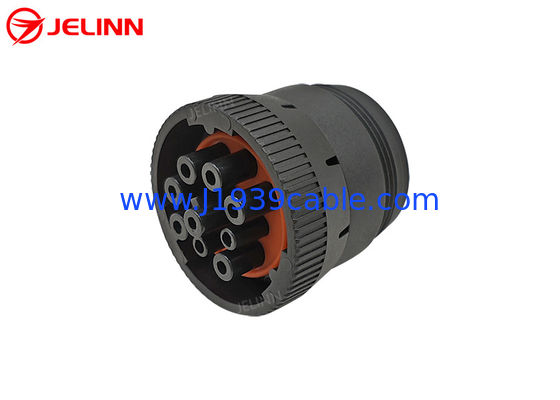

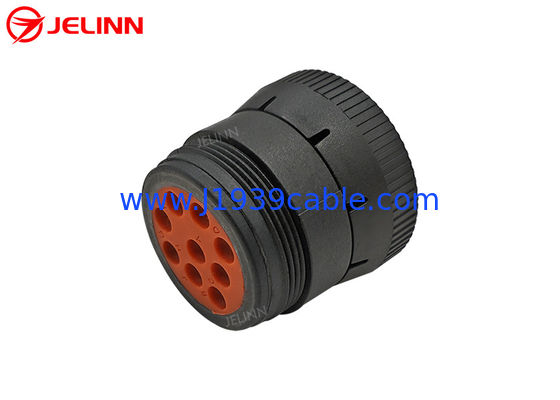

Type 1 Deutsch 9 Pin J1939 Female Connector with 9 PCS of Terminals
|9-Pin J1939 female connector||equivalent of Deutsch HD16-9-1939S|
|Type of 9-Pin J1939 female connector||Type 1|
|Color of 9-Pin J1939 female connector||black|
|Number of positions||9|
|Terminals||copper, nickel-plated or gold-plated|

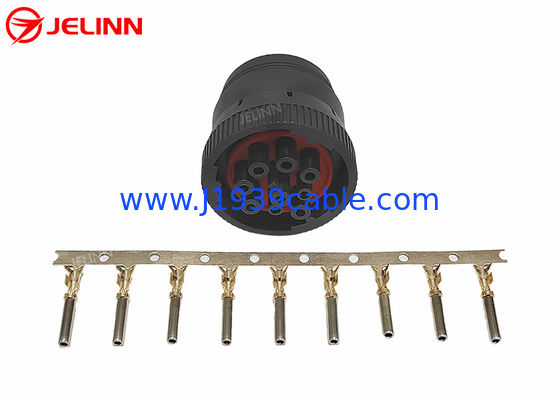

|Number of terminals||9 pcs|
|Mounting type||free hanging (in-line)|
|Fastening type||bayonet lock|
|Housing material||PA66 + glass fiber|
|Working Temperature||−25℃ ~ +100℃|
We made the plastic mold of this 9-Pin J1939 female connector by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 female connectors according to the mold.
The 9-Pin J1939 female socket is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.
Remember that this is a female connector because it is with terminals. The 9-Pin J1939 male connector is with pins.
The Deutsch 9 Pin J1939 female connector is Type 1, so its Pin F is with bigger diameter than Pin C and Pin J. Type 1 J1939 9-Pin female connectors can only be inserted into Type 1 J1939 9-Pn male plugs.
These Type 1 J1939 9-Pin female connectors can mate with the following J1939 9-Pin male plugs:
original or equivalent of Deutsch HD10-9-1939P
original or equivalent of Deutsch HD16-9-1939PE
original or equivalent of Deutsch HD10-9-1939P-B022
original or equivalent of Deutsch HD10-9-1939PE-B022
original or equivalent of Deutsch HD14-9-1939P
original or equivalent of Deutsch HD14-9-1939PE
original or equivalent of Amphenol AHD17-9-1939PES
Pin assignment or pinout
The pin assignment or pinout of 9-Pin J1939 female connector is like this:
The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is clockwise.
These 9-Pin J1939 female connectors can be used to manufacture 9-Pin J1939 cables and adapters.
