|J1939 Male Plug:||Equivalent Of Deutsch HD10-9-1939P-BP03||Type Of J1939 Male Plug:||Type 2|
|Color Of J1939 Male Plug:||Green||Pins:||Copper, Nickel-plated Or Gold-plated|
|Housing Material:||PA66 + Glass Fiber||Grommet Material:||Silicone|
j1939 deutsch connector,
round 9 pin connector

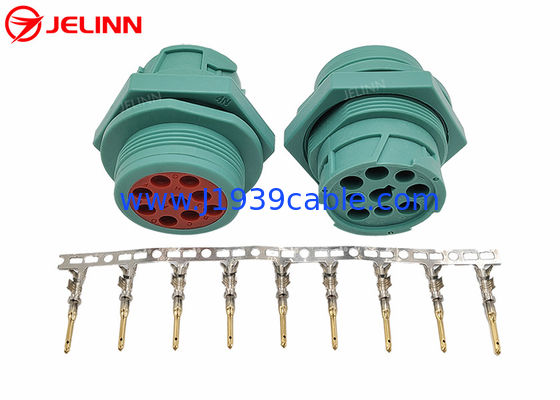

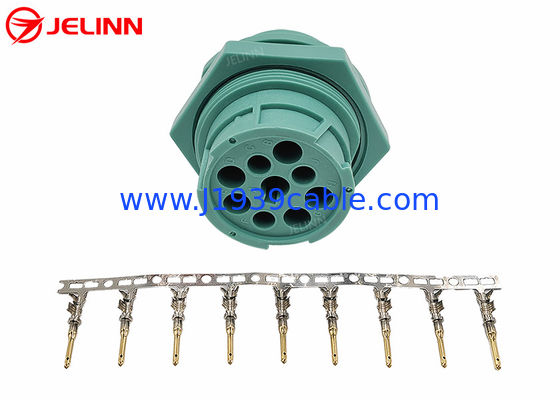

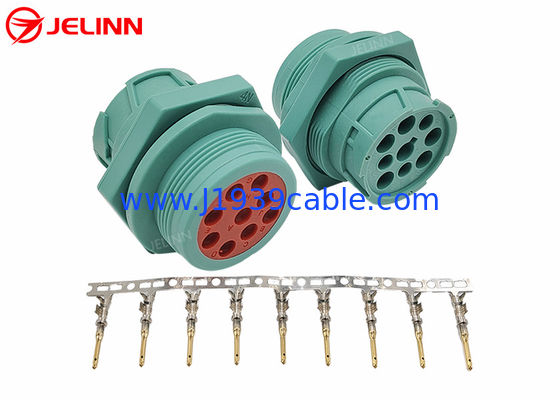

Green Threaded Type 2 Deutsch 9 Pin J1939 Male Plug Connector with 9 Pins
|9-Pin J1939 male plug||equivalent of Deutsch HD10-9-1939P-BP03|
|Type of 9-Pin J1939 male plug||Type 2|
|Color of 9-Pin J1939 male plug||green|
|Number of positions||9|
|Pins||copper, nickel-plated or gold-plated|
|Number of pins||9 pcs|
|Mounting type||panel mount|
|Fastening type||bayonet lock|
|Housing material||PA66 + glass fiber|
|Working Temperature||−25℃ ~ +100℃|
We made the plastic mold of this 9-Pin J1939 male plug by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 male plugs according to the mold.
Remember that this is a male connector because it is with pins.
The Deutsch 9 Pin J1939 male plug is Type 2, so its Pin F is with the same small diameter as Pin C and Pin J. This Type 2 J1939 9-Pn male plug can only accept Type 2 J1939 9-Pn female connector.
They can mate with the following connectors:
original or equivalent of Deutsch HD16-9-1939S-P080
original or equivalent of Deutsch HD16-9-1939SE-P080
original or equivalent of Deutsch HD17-9-1939S-P080
original or equivalent of Deutsch HD17-9-1939SE-P080
The 9-Pin J1939 male receptacle is threaded jamnut mount style common on Paccar trucks (Kenworth, Peterbilt, Western Star).
Pin assignment or pinout
The pin assignment or pinout of 9-Pin J1939 male plug is like this:

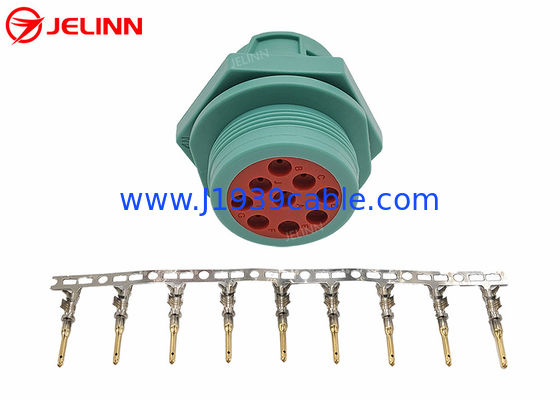

The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is anticlockwise.
These 9-Pin J1939 male plugs can be used to replace the original 9 pin J1939 plugs equipped in Paccar trucks (Kenworth, Peterbilt, Western Star). They can also be used to manufacture 9-Pin J1939 cables and adapters.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
