|Pins Or Terminals:||Copper, Nickel-plated Or Gold-plated||Cable Shape:||Flat Ribbon|
|Insulation Resistance:||5M Ohm Min.||Wire:||26AWG, Pure Copper|
OBDII flat cable,
j1962 right angle flat cable,
obd2 male to female flat cable

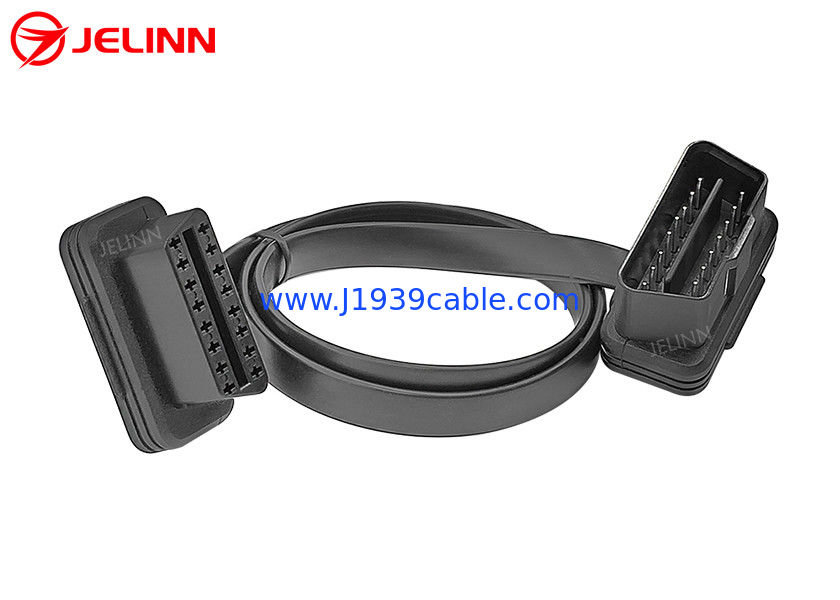

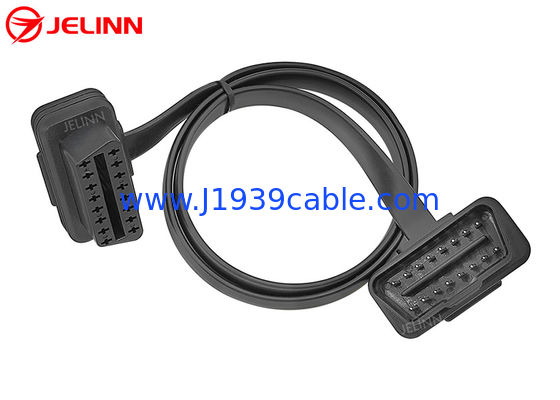

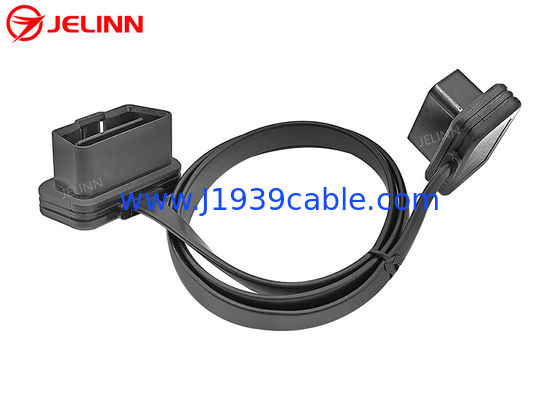

OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Flat Cable
|OBD2 male plug||standard|
|Overmold of OBD2 male plug||slim design, right angle 90-degree|
|OBD2 female connector||standard|
|Overmold of OBD2 female connector||slim design, right angle 90-degree|
|Material of overmolded part||PVC|
|Cable shape||flat, thin|
|Wire||26AWG, pure copper|
|Material of OBD2 male and female connectors||PA66|
|Pin assignment or pin out||customized|
|Pins of OBD2 male plug||copper, nickel-plated or gold-plated|
|Terminals of OBD2 female connector||copper, nickel-plated or gold-plated|
|Contact Resistance||3 ohm max.|
|Insulation Resistance||5M ohm min.|
|Working Temperature||−25℃ ~ +85℃|
|Testing||100% open, short and mis-wire testing|
|Testing Voltage||DC300V 5M ohm/10ms|
We made plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.
We can make different overmolds for the ends of OBD2 OBDII female and male connectors. If you don’t like the overmolds at the ends of OBD2 OBDII female and male connectors as shown in the pictures or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge. Moreover, we can even make it for free as long as the order quantity is 5000 pcs or more.
Pin assignment or pin out
The pin assignment or pin out can be like this:
|OBD2 male plug||OBD2 female connector|
As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the main cable.
The pin assignment or pin out can also be like this:
|OBD2 male plug||OBD2 female connector|
As to this pin out, all 16 pins of the OBD2 male and female connectors are wired, so there are 16 wires of 26AWG in the main cable.
The pin assignment or pin out can be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.
This OBD2 male to female extension cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female ports.
In some cars, the OBD2 OBDII female diagnostic ports are covered by lids. If you would like to connect and install some OBD2 telematics or IoV devices to the OBD2 OBDII female diagnostic ports in these cars, this cable is perfect for this application. The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out at a right angle 90-degree. The overmold is with slim design and the cable is flat and thin. These features make it easy to connect and install these kinds of OBD2 telematics or IoV devices to the OBD2 OBDII female diagnostic ports in these cars. Moreover, we can also create an overmold which makes the total thickness of the OBD2 male plug (we have a very thin OBD2 male plug, thinnest and standard OBD2 male plug in the world) after overmolding only 19mm. This OBD2 male plug of 19mm after overmolding can be inserted into the OBD2 OBDII female diagnostic ports in most cars including Volkswagen Caddy.
This cable can also connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to OBD2 female ports in cars, mainly for diagnostic purposes.
Sending an inquiry
If you haven’t found or don’t have time to look for the OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
