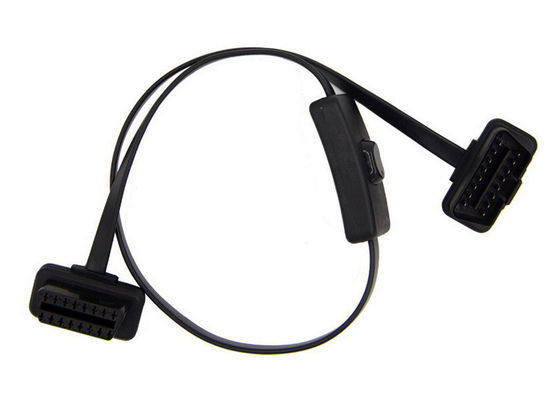

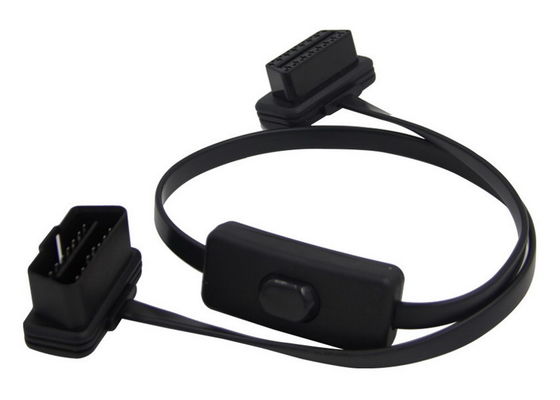

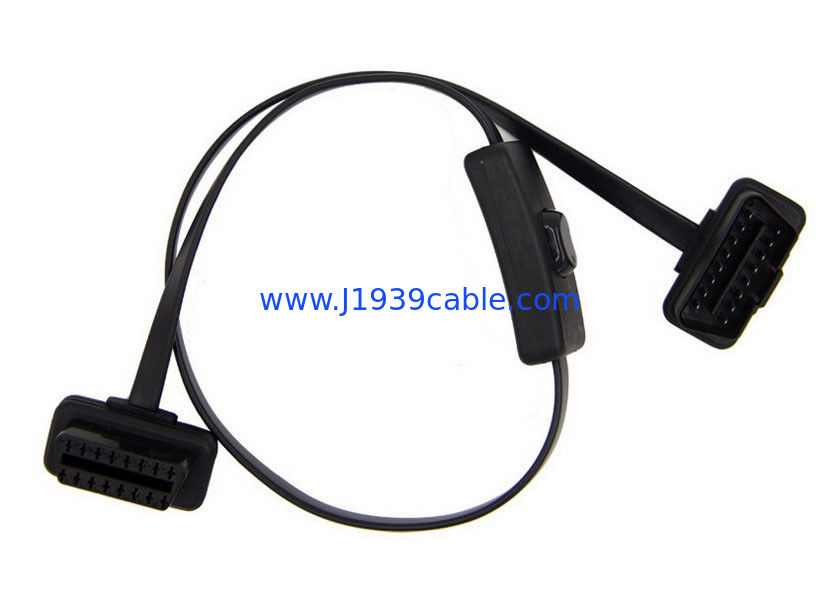

OBD2 OBDII J1962 Right Angle Male to Female Extension Flat Cable with Switch
Specification
OBD2 male plug | standard |
Overmold of OBD2 male plug | right angle 90-degree |
OBD2 female connector | standard |
Overmold of OBD2 female connector | right angle 90-degree |
Cable shape | flat ribbon |
Wire | 26AWG, pure copper |
Material of OBD2 male and female connectors | PA66 |
Pin assignment or pin out | customized |
Cable length | customized |
Pins or terminals | copper, nickel-plated or gold-plated |
Contact Resistance | 3 ohm max. |
Insulation Resistance | 5M ohm min. |
Working Temperature | −25℃ ~ +85℃ |
Testing | 100% open, short and mis-wire testing |
Testing Voltage | DC300V 5M ohm/10ms |
Warranty | 1 year |
We opened plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.
There is a switch on the cable. Pressing the switch to switch on or off. With the switch, there is no need to plug or unplug this cable frequently.
The overmolded PVC injection at the ends of 16-Pin OBD2 OBDII female and male connectors is right angle 90-degree. The overmold is with slim design. These features can help save some space when connecting and installing telematics devices.
Pin assignment or pin out
The pin assignment or pin out can be like this:
OBD2 male plug | OBD2 female connector |
2 | 2 |
4+5 | 4+5 |
6 | 6 |
7 | 7 |
10 | 10 |
14 | 14 |
15 | 15 |
16 | 16 |
As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the main cable.
The pin assignment or pin out can also be like this:
OBD2 male plug | OBD2 female connector |
1 | 1 |
2 | 2 |
3 | 3 |
4 | 4 |
5 | 5 |
6 | 6 |
7 | 7 |
8 | 8 |
9 | 9 |
10 | 10 |
11 | 11 |
12 | 12 |
13 | 13 |
14 | 14 |
15 | 15 |
16 | 16 |
As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in the main cable.
The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.
Application
This OBD2 OBDII male to female extension cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female ports.
This cable can also connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to OBD2 female ports in cars, mainly for dignostic purposes.
