Product Details:
Payment & Shipping Terms:
|
| Pins Or Terminals: | Copper, Nickel-plated Or Gold-plated | Cable Shape: | Flat Ribbon, Slim |
|---|---|---|---|
| Insulation Resistance: | 5M Ohm Min. | Working Temperature: | −25℃ ~ +85℃ |
| Highlight: | obd extension cable,obd2 cable extension,obdii extension cable |
||

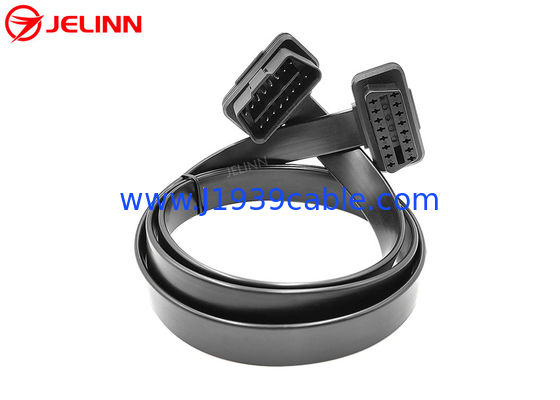

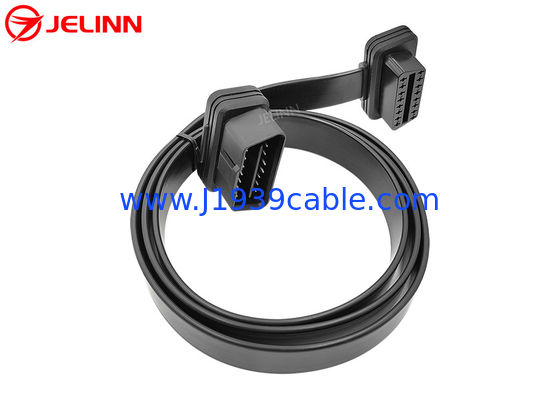

OBD 2 OBD2 Extension Cable J1962 Male to Female OBDII Connector Extender With 16-core Wires
Specification
| OBD2 male plug | standard |
| Overmold of OBD2 male plug | straight |
| OBD2 female connector | standard |
| Overmold of OBD2 female connector | straight |
| Cable shape | flat ribbon, slim |
| Wire | 26AWG, pure copper |
| Material of OBD2 male and female connectors | PA66 |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Pins or terminals | copper, nickel-plated or gold-plated |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and mis-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |
We opened plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.
The overmolded PVC injection at the ends of 16-Pin OBD2 OBDII female and male connectors is straight. The overmolds are with slim design. These features can help save some space when connecting and installing telematics devices.
Thanks to the slim design of the overmolds, the weight of this flat cable can be smaller than that of round cable.
Pin assignment or pin out
The pin assignment or pin out can be like this:
| OBDII male plug | OBDII female connector |
| 2 | 2 |
| 4+5 | 4+5 |
| 6 | 6 |
| 7 | 7 |
| 10 | 10 |
| 14 | 14 |
| 15 | 15 |
| 16 | 16 |
As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the main cable.
The pin assignment or pin out can also be like this:
| OBDII male plug | OBDII female connector |
| 1 | 1 |
| 2 | 2 |
| 3 | 3 |
| 4 | 4 |
| 5 | 5 |
| 6 | 6 |
| 7 | 7 |
| 8 | 8 |
| 9 | 9 |
| 10 | 10 |
| 11 | 11 |
| 12 | 12 |
| 13 | 13 |
| 14 | 14 |
| 15 | 15 |
| 16 | 16 |
As to this pin out, all 16 pins of the OBD2 male and female connectors are wired, so there are 16 wires of 26AWG in the main cable.
The pin assignment or pin out can be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.
Application
This OBD2 male to female extension cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female diagnostic ports.
This cable can also connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to OBD2 female ports in cars, mainly for dignostic purposes.
Sending an inquiry
If you haven’t found or don’t have time to look for the OBD2, J1939 or J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
