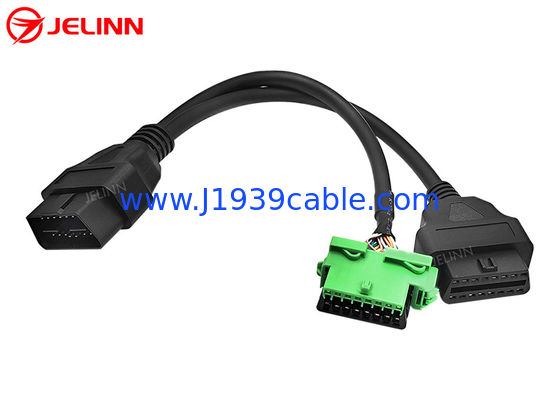

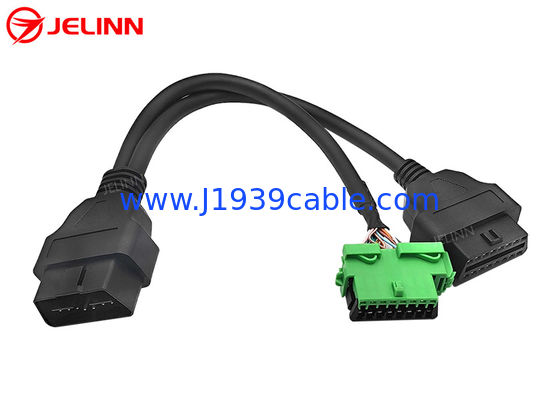

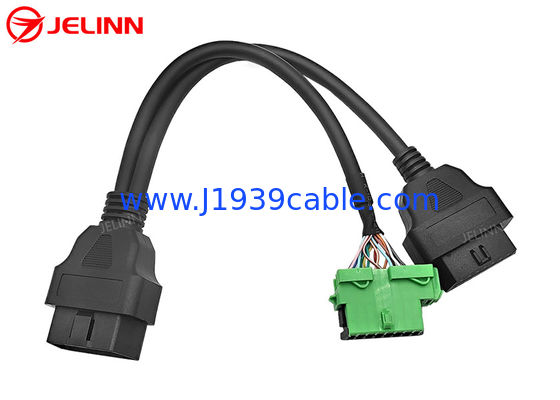

OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable

OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable

OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable
OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable

Large Image :  OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: OBD2 OBDII
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
Pins Of OBD2 Male Plug: Copper, Nickel-plated Or Gold-plated Terminals Of OBD2 Female Connector: Copper, Nickel-plated Or Gold-plated
Testing: 100% Open, Short And Miss-wire Testing Wire: 26AWG, Pure Copper
High Light:

J1962 Y splitter

,

Peugeot OBD2 Y cable

,

Citroen J1962 Y cable

OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable


Specification



OBD2 male plug standard, 12V/24V
Pins of OBD2 male plug copper, nickel-plated or gold-plated
Overmold of OBD2 male plug straight
Peugeot and Citroen OBD2 female connector equivalent of the original
Common OBD2 female connector standard, with KET terminals
Terminals of OBD2 female connectors copper, nickel-plated or gold-plated
Overmold of OBD2 female connector straight
Material of overmolded part PVC
Cable shape round
Wire 26AWG, pure copper
Material of OBD2 male and female connectors PA66
Pin assignment or pin out customized
Cable length customized
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and miss-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year


This is a Y cable with 3 ends of an OBD2 male plug, a replacement Peugeot and Citroen OBD2 female connector and a common OBD2 female connector.

The common OBD2 OBDII J1962 female connector is with quality endurable KET terminals, which is more suitable for a test or diagnostic environment where the devices are plugged and unplugged frequently.

OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable 0

The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out straight.



OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable 1





There is a gap on the baffle in the middle of the OBD2 OBDII male plug. This kind of OBD2 male plug can be connected to OBD2 female ports of 24V/12V vehicles.



OBD2 OBD-II Male to Peugeot and Citroen OBD2 Female and OBD2 Female Y Cable 2




Pin assignment or pin out

The pin assignment or pin out can be like this:



OBD2 male plug Peugeot and Citroen OBD2 female connector common OBD2 female connector
1 1 /
2 2 2
3 3 /
4+5 4+5 4+5
6 6 6
7 7 7
8 8 /
9 9 /
10 10 10
11 11 /
12 12 /
13 13 /
14 14 14
15 15 15
16 16 16


As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the cable from OBD2 male plug to common OBD2 female connector. All 16 pins of OBD2 male plug to Peugeot and Citroen OBD2 female connector are wired, so there are 16 wires of 26AWG in the cable from OBD2 male plug to Peugeot and Citroen OBD2 female connector.

The pin assignment or pin out can also be like this:



OBD2 male plug Peugeot and Citroen OBD2 female connector common OBD2 female connector
1 1 1
2 2 2
3 3 3
4 4 4
5 5 5
6 6 6
7 7 7
8 8 8
9 9 9
10 10 10
11 11 11
12 12 12
13 13 13
14 14 14
15 15 15
16 16 16


As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in both cables.

The pin assignment or pin out can also be customized according to your needs.


Application

This Y cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female diagnostic ports.



This OBD2 OBDII Y Cable allows port relocation or connection of multiple telematics or IoV devices. Take the original Peugeot and Citroen OBD2 female diagnostic port off its original location with tools if necessary and then insert the OBD2 male plug at the end of this OBD2 Y cable into the original Peugeot and Citroen OBD2 female diagnostic port. Install the replacement Peugeot and Citroen OBD2 female connector at one end of the Y ends back to the original location of the OBD2 female diagnostic port in the car. Then you can connect a telematics or IoV device to the common OBD2 female connector at the other end of the Y ends. You can also connect another telematics or tuning device to the OBD2 female connector which was installed at the original location or leave this OBD2 female connector available for diagnostic use in the future. If you leave replacement Peugeot and Citroen OBD2 female connector available and then hide the telematics or IoV device connected to the common OBD2 female connector, then nobody would know that you have installed these devices without opening the panel.

This cable can also be used to connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software).


Sending an inquiry

If you haven’t found or don’t have time to look for the OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
