OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable

OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable

OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable
OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable

Large Image :  OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: OBD2 OBDII
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
Pins Or Terminals: Copper, Nickel-plated Or Gold-plated Cable Shape: Round
Insulation Resistance: 5M Ohm Min. Wire: 26AWG, Pure Copper
High Light:

OBD 16 pin cable

,

OBDII adapter cable

,

16 pin obd male to female extension cable

OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable


Specification


OBD2 male plugstandard
Overmold of OBD2 male plugright angle 90-degree
OBD2 female connectorstandard
Overmold of OBD2 female connectorstraight
Cable shaperound
Wire26AWG, pure copper
Material of OBD2 male and female connectorsPA66
Pin assignment or pin outcustom
Cable lengthcustom
Pins or terminalscopper, nickel-plated or gold-plated
Contact Resistance3 ohm max.
Insulation Resistance5M ohm min.
Working Temperature−25℃ ~ +85℃
Testing100% open, short and mis-wire testing
Testing VoltageDC300V 5M ohm/10ms
Warranty1 year


We opened plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.

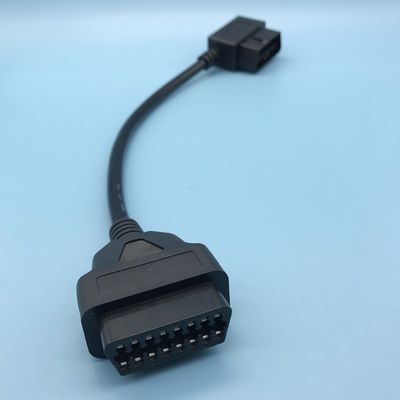

The OBD2 OBDII female connector is with quality endurable KET terminals, which is more suitable for a test or diagnostic environment where the telematics devices are plugged and unplugged frequently.

OBD2 OBDII 16-Pin J1962 Right Angle Male to Female Extension Round Cable 0

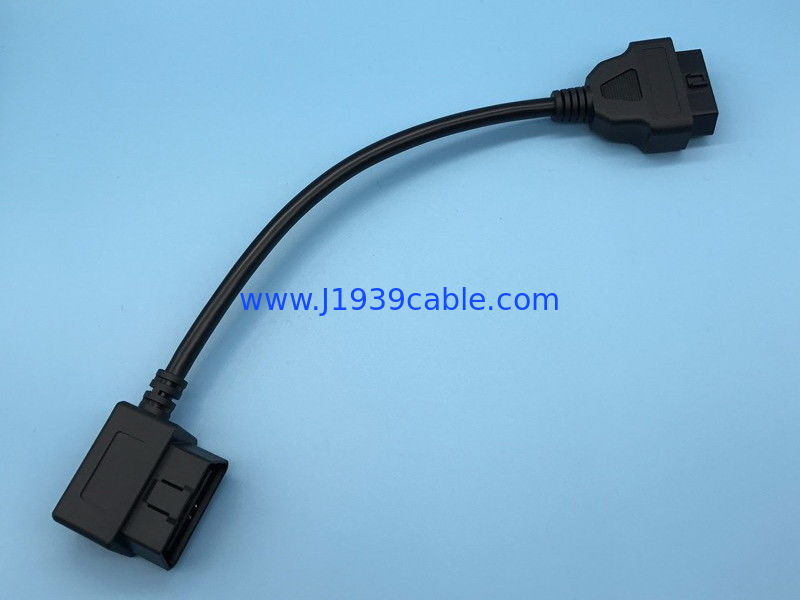

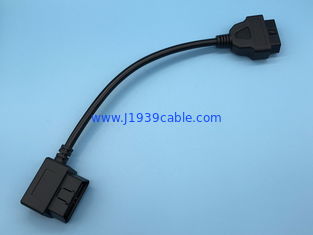

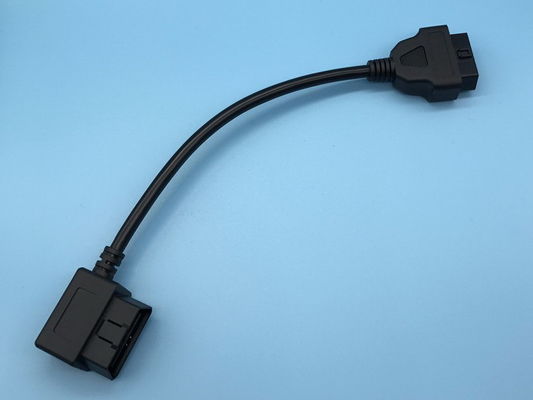

The overmolded PVC injection at the end of 16-Pin OBD2 OBDII male plug is right angle 90-degree. This can help save some space when connecting and installing telematics devices.


Pin assignment or pin out

The pin assignment or pin out can be like this:


OBD2 male plugOBD2 female connector
22
4+54+5
66
77
1010
1414
1515
1616


As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the main cable.

The pin assignment or pin out can also be like this:


OBD2 male plugOBD2 female connector
11
22
33
44
55
66
77
88
99
1010
1111
1212
1313
1414
1515
1616


As to this pin out, all 16 pins of the OBD2 OBDII male and female connectors are wired, so there are 16 wires of 26AWG in the main cable.

The pin assignment or pin out can be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.


Application

This OBD2 OBDII male to female extension cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' OBD2 female ports.

This cable can also connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to OBD2 female ports in cars, mainly for dignostic purposes.


Sending an inquiry

If you haven’t found or don’t have time to look for the OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
