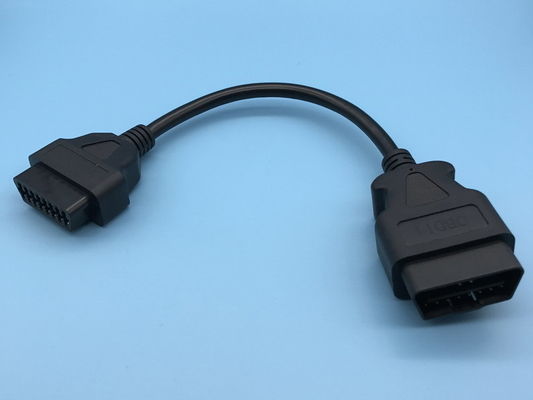

OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable

OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable

OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable
OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable

Large Image :  OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: RoHS
Model Number: OBD2 OBDII
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Please email us for prices
Packaging Details: PE bags and then cartons
Delivery Time: 3-30 working days
Payment Terms: T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability: 50,000 pcs per month
Detailed Product Description
Pins Or Terminals: Copper, Nickel-plated Or Gold-plated Cable Shape: Round
Insulation Resistance: 5M Ohm Min. Wire: 26AWG, Pure Copper
High Light:

obd2 round cable

,

obd ii adapter cable

,

16 pin j1962 male to female cable

OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable


Specification


OBD2 male plug standard
Pins of OBD2 male plug copper, nickel-plated or gold-plated
Overmold of OBD2 male plug straight
OBD2 female connector standard
Terminals of OBD2 female connector KET brand, copper, nickel-plated or gold-plated
Overmold of OBD2 female connector straight
Material of overmolded part PVC
Cable shape round
Wire 26AWG, pure copper
Material of OBD2 male and female connectors PA66
Pin assignment or pin out customized
Cable length customized
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and mis-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year


We opened plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.

The OBD2 OBDII female connector is with quality endurable KET terminals, which is more suitable for a test or diagnostic environment where the devices are plugged and unplugged frequently.

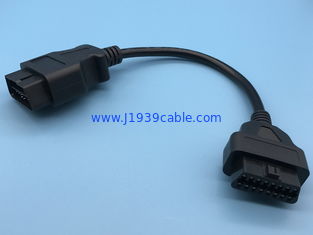

OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable 0

The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out straight.

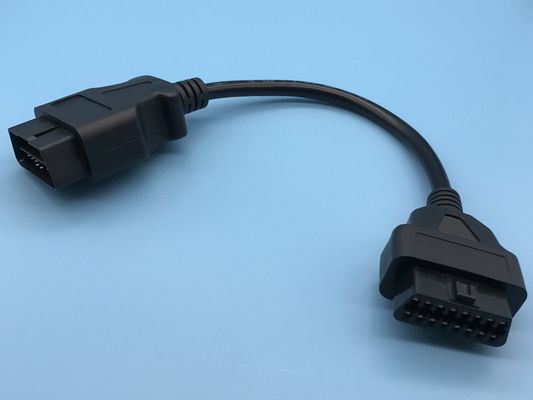

OBDII 16-Pin J1962 Male to OBD2 Female (with endurable terminals) Extension Round Cable 1



We can make different overmolds for the ends of OBD2 OBDII female and male connectors. If you don’t like the overmolds at the ends of OBD2 OBDII female and male connectors as shown in the pictures or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge. Moreover, we can even make it for free as long as the order quantity is 5000 pcs or more.




Pin assignment or pin out

The pin assignment or pin out can be like this:



OBD2 male plug OBD2 female connector
2 2
4+5 4+5
6 6
7 7
10 10
14 14
15 15
16 16


As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the main cable.

The pin assignment or pin out can also be like this:


OBD2 male plug OBD2 female connector
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
15 15
16 16


As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in the main cable.

The pin assignment or pin out can be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.


Application

This OBD2 OBDII male to female extension cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female diagnostic ports.



It is important to check whether the telematics or IoV devices can be compatible with the vehicle’s voltage (12V or 24V) before connecting them to the original OBD2 female diagnostic ports with this cable.

This cable can also connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to OBD2 female diagnostic ports in cars, mainly for dignostic purposes.


Sending an inquiry

If you haven’t found or don’t have time to look for the OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
