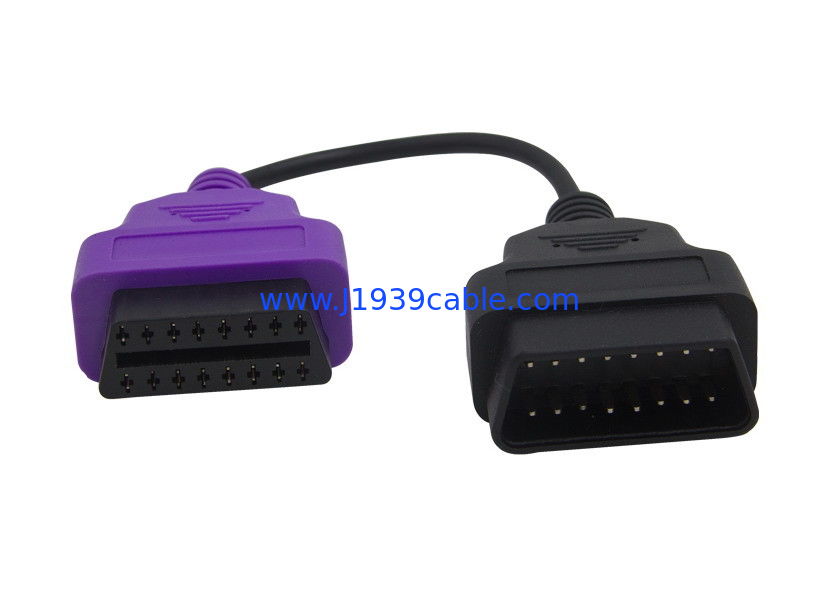

OBD2 OBDII 16 Pin J1962 Purple Male to Female Extension Round Cable

OBD2 OBDII 16 Pin J1962 Purple Male to Female Extension Round Cable


Specification



We opened plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.

There is a gap on the baffle in the middle of the OBD2 OBDII male plug. This kind of OBD2 male plug can be connected to OBD2 female ports of 24V/12V vehicles.



The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out straight. The overmolded plastic part at the end of OBD2 male plug is purple.


Pin assignment or pin out

The pin assignment or pin out can be like this:



As to this pin out, Pin 4 and Pin 5 of the OBD2 OBDII male and female connectors are connected together with a short wire. The black wire in the main cable is connected to Pin 4 or Pin 5. There are 9 pins wired, but there are 8 wires of 26AWG in the main cable.

The pin assignment or pin out can also be like this:


As to this pin out, all 16 pins of the OBD2 male and female connectors are wired, so there are 16 wires of 26AWG in the main cable.

The pin assignment or pin out can be customized according to your needs.


Application

This OBD2 OBDII male to female extension cable is used to connect telematics, IoV devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female ports.

This cable can also connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to vehicles' OBD2 female ports, mainly for dignostic purposes.


Sending an inquiry
If you haven’t found or don’t have time to look for the OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
